Accessory Drive - V8 S/C 5.0L Petrol: Specifications
WARNING: This page is about a different variant/trim than selected.
| COMPONENT TORQUE LOCATION |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
TORQUE SPECIFICATIONS
| |
DESCRIPTION |
NM |
LB-FT |
LB-IN |
| 1 |

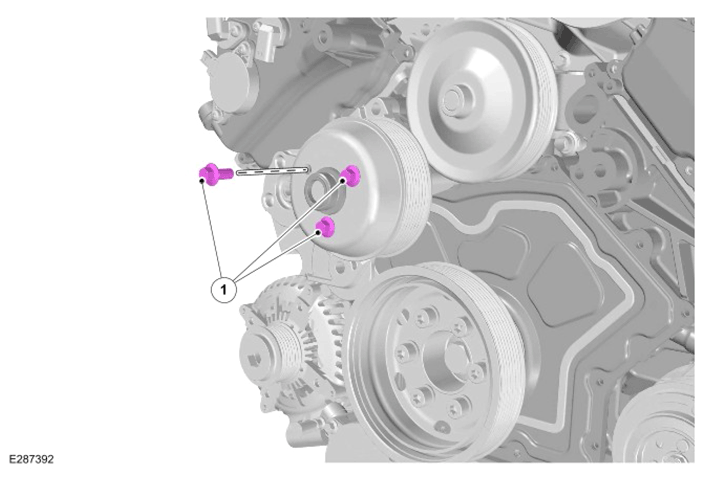

Viscous cooling fan drive pulley bolts |
25 |
18 |
- |
| COMPONENT TORQUE LOCATION |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
TORQUE SPECIFICATIONS
| |
DESCRIPTION |
NM |
LB-FT |
LB-IN |
| 1 |

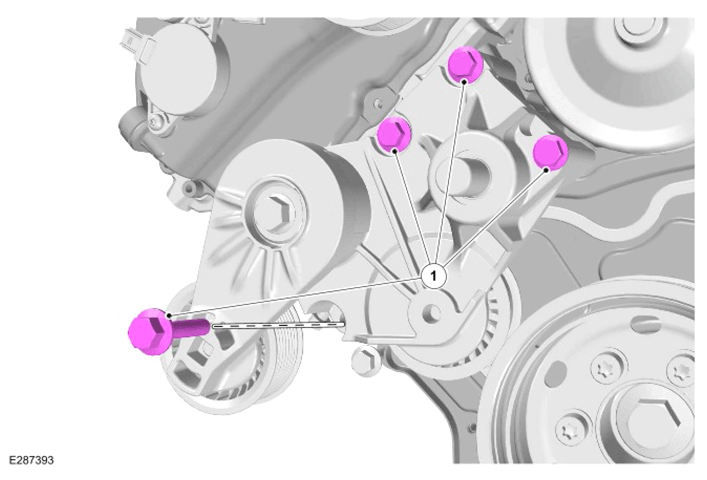

Supercharger drive belt tensioner assembly bolts |
25 |
18 |
- |
| COMPONENT TORQUE LOCATION |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
TORQUE SPECIFICATIONS
| |
DESCRIPTION |
NM |
LB-FT |
LB-IN |
| 1 |

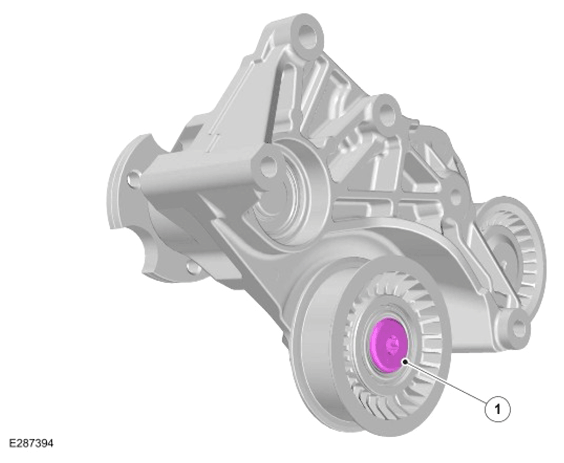

Accessory drive belt pulley bolt |
47 |
35 |
- |
| COMPONENT TORQUE LOCATION |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
TORQUE SPECIFICATIONS
| |
DESCRIPTION |
NM |
LB-FT |
LB-IN |
| 1 |

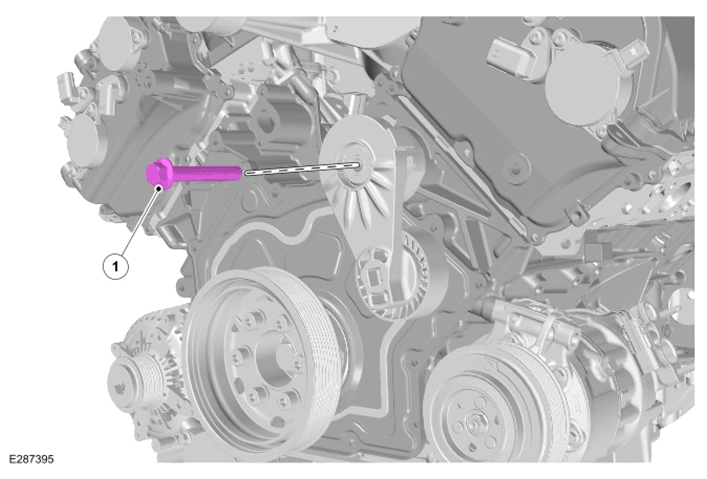

Accessory drive belt tensioner bolt |
47 |
35 |
- |
| COMPONENT TORQUE LOCATION |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
TORQUE SPECIFICATIONS
| |
DESCRIPTION |
NM |
LB-FT |
LB-IN |
| 1 |

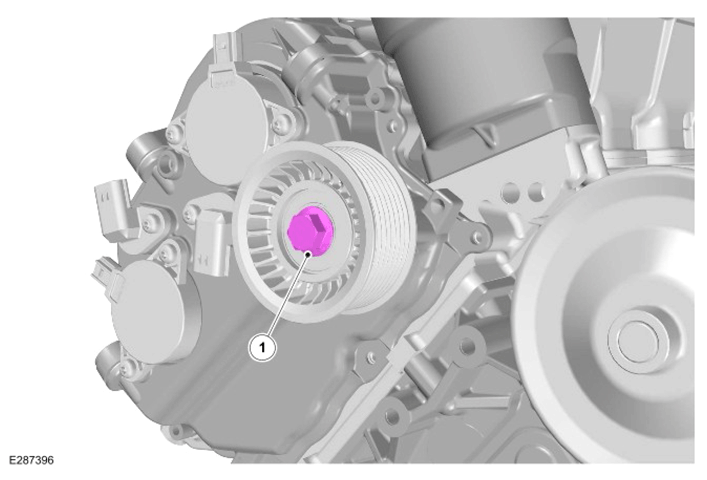

Supercharger belt idler pulley bolt |
47 |
35 |
- |
