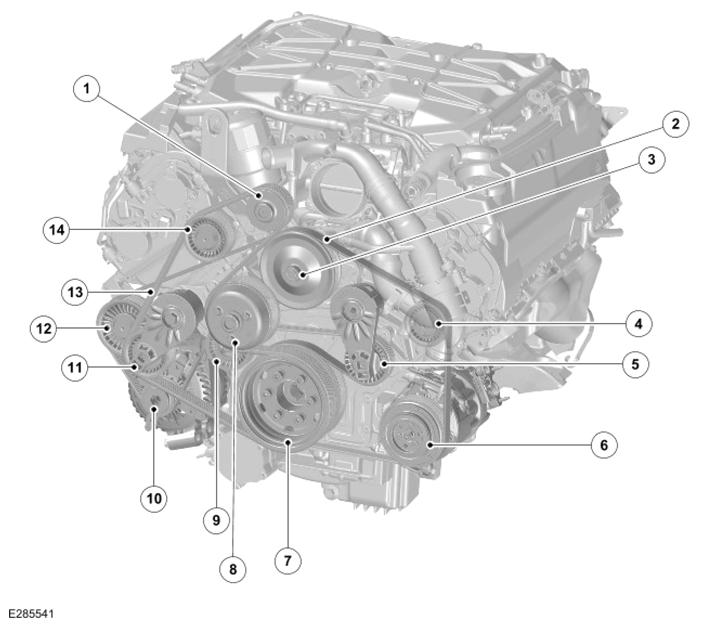

Component Location
WARNING: This page is about a different variant/trim than selected.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Supercharger pulley |
| 2 | Accessory drive belt |
| 3 | Coolant pump pulley |
| 4 | Idler pulley |
| 5 | Accessory drive belt tensioner |
| 6 | Air Conditioning (A/C) compressor pulley |
| 7 | Crankshaft pulley |
| 8 | Viscous cooling fan pulley |
| 9 | Idler pulley |
| 10 | Generator pulley |
| 11 | Supercharger drive belt tensioner |
| 12 | Idler pulley |
| 13 | Supercharger drive belt |
| 14 | Idler pulley |
