Full Load Breather
WARNING: This page is about a different variant/trim than selected.

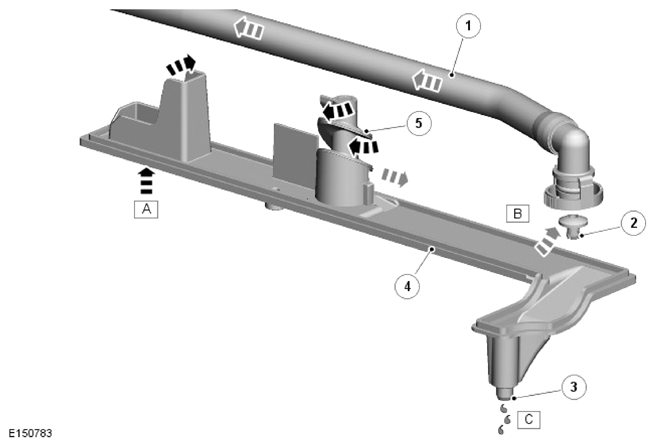

| ITEM | DESCRIPTION |
|---|---|
| A | Gas and oil vapor |
| B | Gas vapor |
| C | Oil |
| 1 | Full load breather pipe |
| 2 | Check valve |
| 3 | Oil drain |
| 4 | Baffle plate |
| 5 | Engine vent oil separator |
The full load breather consists of an engine vent oil separator, a check valve and a flexible hose. The engine vent oil separator and the check valve are installed in the top of the left camshaft cover. The flexible hose connects the left camshaft cover to the clean air duct of the intake air distribution and filtering system.
A baffle plate, which incorporates a gas intake and an oil drain, is installed over the channel. The check valve is installed in the gas outlet from the channel. There are 2-way valve to regulate fresh air flow and improve idle stability.
