Fuel Charging And Controls - V8 S/C 5.0L Petrol (G2796609): Specifications

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN
1	Fuel line bracket bolts	8	-	71
2	Fuel line unions	21	15	-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN
1	Fuel line assembly M5 nut	6	-	53
2	Fuel line assembly M8 bolt	25	18	-
3	Fuel line assembly M6 bolt	11	8	-
4	Fuel line assembly unions	21	15	-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN
1	Low Pressure (LP) fuel line unions	20	15	-
2	LP  fuel line bracket bolts	12	9	-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN
1	Fuel line heatshield M10 bolt	29	21	-
2	Fuel line heatshield M6 bolt	11	8	-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN
1	High Pressure (HP) fuel pump bolts	11	8	-

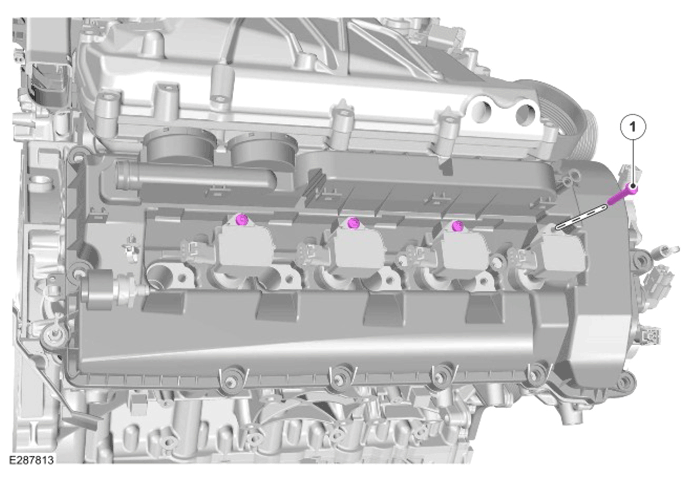

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN
1	Ignition coil bolts	8	-	71

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN
1	Fuel rail bolts	30	22	-

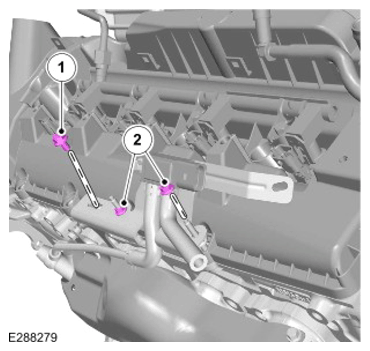

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN
1	Left differential pressure sensor assembly bolt	9	-	80
2	Left differential pressure sensor assembly nuts	9	-	80

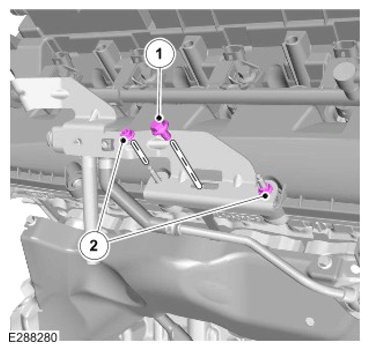

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN
1	Right differential pressure sensor assembly bolt	9	-	80
2	Right differential pressure sensor assembly nuts	9	-	80

NOTE: Numbers with green background are single use components.

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN
1	Steering column lower shaft bolt	30	22	-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN
1	Ground cable bolt	9	-	80

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN
1	Left engine mound nut	180	133	-
2	Right engine mount nut	180	133	-

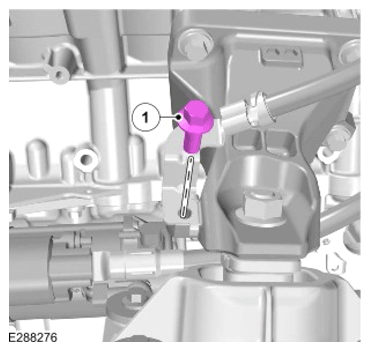

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM		LB-FT
1	Left/Right engine mount bracket bolts	Stage 1 - 45 Nm	Stage 2 - 60 Degrees	Stage 1 - 33 Lb-ft	Stage 2 - 60 Degrees

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN
1	Idler pulley bolts	21	15	-

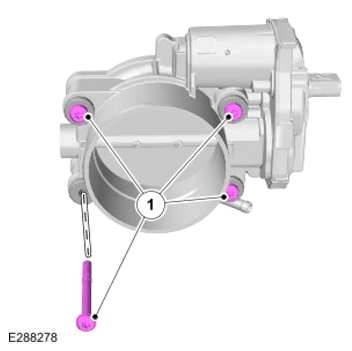

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN
1	Electric throttle bolts	10	7	-

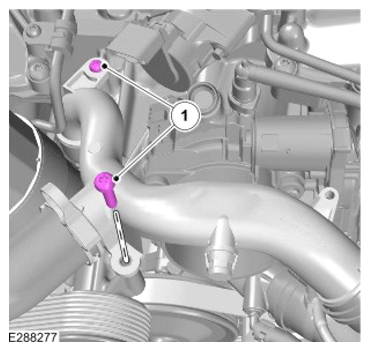

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN
1	Engine coolant outlet pipe bolts	12	9	-
