Right Fuel Injectors (G2867294): Installation

WARNING: This page is about a different variant/trim than selected.
  1. G11607553Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install new fuel injector O-ring seals to the 4 fuel injectors.

    Renew Part: Fuel Injector replacement kits Quantity: 4  .

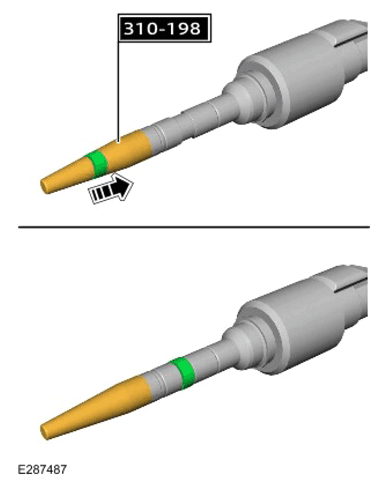

  2. G15304421Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Using the special tool, install the new Teflon™ seals on the lower tips of the fuel injectors.

    Special Tool(s): 310-198

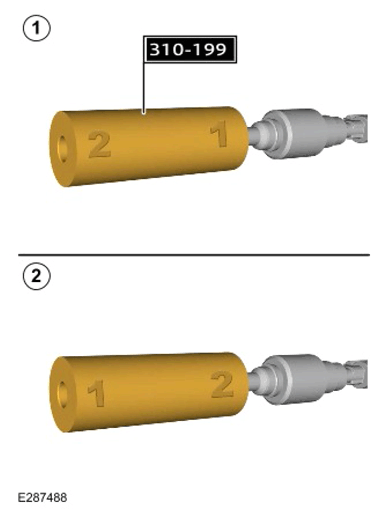

  3. G15304422Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Using the special tool, re-shape the Teflon™ seal as illustrated.

    Special Tool(s): 310-199

  4. G11587674Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the 4 new fuel injector spring clamp.

    Renew Part: Fuel injector clamp(s) Quantity: 4  .

  5. G11688968Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the 4 new fuel injectors.

  6. CAUTION: If a new cylinder head has been installed then the special tool 310-200-02 without the thread must be used to install the fuel rail.
    G14053361Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the special tool.

    Special Tool(s): 310-200-01  , 310-200-02

  7. CAUTION:
    • If new fuel injectors are installed, a new injector clamp must be installed.
    • Make sure that the fuel injector is aligned and installed into the fuel rail correctly, as noted in the removal step.
    G14053363Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Do not fully tighten the bolts at this stage.
    • Lubricate the fuel injector O-ring seals with clean engine oil.
    • Install the fuel rail.
    • Install and tighten the 2 bolts a half turn at a time until the correct torque is achieved.

      Torque  : 20 Nm

  8. G14053364Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the special tool.

    Remove the Special Tool(s): 310-200-01  , 310-200-02

  9. G14053365Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install and tighten the 2 bolts in the illustrated sequence.

    Torque  : 20 Nm

  10. G14053365Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Tighten the 2 bolts in the sequence illustrated.

    Torque  : 30 Nm

  11. G14053367Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Tighten the 2 bolts in the illustrated sequence.

    Torque  : 30 Nm

  12. G14053029Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the 4 ignition coils.
    • Install and tighten the 4 bolts.

      Torque  : 8 Nm

  13. G14053020Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Reposition the engine wiring harness in the correct location.
    • Secure the 5 clips.
    • Connect the 9 electrical connectors.
    • Install and tighten the nut.

      Torque  : 6.2 Nm

  14. G14053386Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install a new HP  fuel pump outlet pipe assembly to the stud on the valve cover.

      Renew Part: Fuel rail supply pipe(s) Quantity: 1  .

    • Connect the 3 fuel line unions.
    • Tighten the 3 fuel line unions.

      Torque  : 20 Nm

    • Install and tighten the M6 bolt.

      Torque  : 11.5 Nm

    • Install and tighten the M8 bolt.

      Torque  : 26 Nm

    • Install and tighten the nut.

      Torque  : 6 Nm

  15. G15304217Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the heatshield.
    • Install and tighten the 2 bolts.

      Torque

      M10: 29 Nm

      M6: 11.5 Nm

  16. G15304216Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Reposition the wiring harness in the correct location.
    • Connect the 2 electrical connectors.
    • Secure the 4 wiring harness clips as illustrated.
  17. G15304215Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the engine mount bracket.

  18. G15322226Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install and tighten the 4 engine mount bracket bolts.

    Torque

    Stage 1: 45 Nm

    Stage 2: 60°

  19. G15322224Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the engine support.

    General Equipment: Transmission jack

  20. G15322223Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install and tighten the engine mount nut.

    Torque  : 180 Nm

  21. G15322222Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Reposition and secure the ground cable to the original position.
    • Install and tighten the bolt.

      Torque  : 9 Nm

  22. G15304210Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the idler pulley bracket.
    • Install and tighten the 3 bolts.

      Torque  : 25 Nm

  23. NOTE: Right hand drive vehicles only.
    G15322221Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Connect the steering column shaft as illustrated.
    • Install and tighten a new steering column lower shaft lower bolt.

      Renew Part: Steering column lower shaft lower bolt Quantity: 1  .

      Torque  : 30 Nm

  24. G15304207Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Reposition the wiring harness to the original position.
    • Secure the clip.
  25. G15305914Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Connect and finger tighten the 2 fuel crossover line unions as illustrated.
    • Install and tighten the 4 fuel crossover line bracket bolts in the sequence illustrated.

      Torque

      M6: 12 Nm

    • Tighten the 2 fuel crossover line unions in the sequence illustrated.

      Torque  : 20 Nm

  26. G15312165Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Reposition the wiring harness to the original position.
    • Connect the 4 electrical connectors.
    • Secure the 2 clips.
  27. G15312164Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Reposition the breather pipe to the original position.
    • Connect the breather pipe connector.
    • Secure the clip.
  28. G15305903Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the oil filler cap.
    • Install the left coil cover as illustrated.
    • Secure the 2 upper clips.
    • Secure the 2 lower studs.
    • Install the oil filler cap.
  29. G15305902Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Connect the 2 fuel line connectors.
    • Secure the 2 fuel lines to the left coil cover.
    • Secure the 2 fuel line clips.
  30. G15312161Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the left differential pressure sensor assembly.
    • Install and tighten the bolt.

      Torque  : 9 Nm

    • Install and tighten the 2 nuts.

      Torque  : 9 Nm

    • Connect the hose.
    • Install the clamp.
    • Connect the electrical connector.
    • Secure the clip.
  31. G15305904Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the right coil cover as illustrated.
    • Secure the 4 lower clips.
    • Secure the stud.
    • Secure the 3 upper clips.
  32. G15312159Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Reposition the vacuum pipe to the original position.
    • Secure the vacuum pipe to the right coil cover.
  33. G15312158Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the right differential pressure sensor assembly.
    • Install and tighten the bolt.

      Torque  : 9 Nm

    • Connect the hose.
    • Install the clamp.
    • Connect the electrical connector.
    • Secure the clip.
  34. G15312157Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Secure the cable bracket assembly to the original position.
    • Install and tighten the 2 nuts.

      Torque  : 9 Nm

  35. G15312156Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Reposition the coolant pipe assembly to the original position.
    • Install the coolant pipe assembly as illustrated.
    • Connect the 5 coolant pipe connectors.
    • Secure the 2 clips.
  36. Install the air cleaner outlet pipe T-connector.

    Refer to: AIR CLEANER OUTLET PIPE T-CONNECTOR

  37. Install the generator.

    Refer to: GENERATOR

  38. Fill the engine with the correct amount of engine coolant.

    Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING

  39. Connect the 12 V system.

    Refer to: 12V SYSTEM DISCONNECT AND CONNECT
