Component Location
WARNING: This page is about a different variant/trim than selected.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|

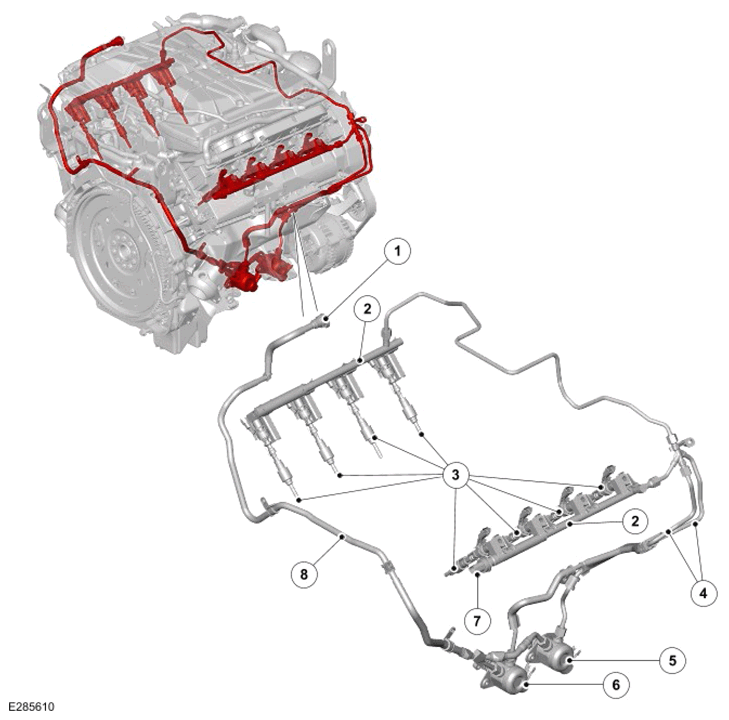

| ITEM |
DESCRIPTION |
| 1 |
Low Pressure (LP) fuel line connection - To fuel tank |
| 2 |
Fuel rail (quantity 2) |
| 3 |
Fuel injector (quantity 8) |
| 4 |
High Pressure (HP) fuel line (quantity 2) |
| 5 |
HP
fuel pump - Front |
| 6 |
HP
fuel pump - Rear |
| 7 |
Fuel Rail Pressure and Temperature (FRPT) sensor |
| 8 |
LP
fuel line |
