Coolant Pump (G2796608): Removal

WARNING: This page is about a different variant/trim than selected.
CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Disconnect the 12V system.

    Refer to: 12V SYSTEM DISCONNECT AND CONNECT

  2. Raise and support the vehicle on a 2 post lift.

    Refer to: JACKING AND LIFTING

  3. Partially drain the engine cooling system.

    Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING

  4. Remove the air cleaner outlet pipe t-connector.

    Refer to: AIR CLEANER OUTLET PIPE T-CONNECTOR

  5. G15303237Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the clamp.
    • Remove the left clean air duct.
  6. WARNING: Be prepared to collect escaping fluids.

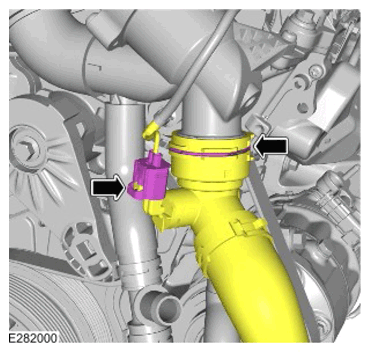

    G15303327Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the electrical connector.
    • Disconnect the coolant hose connector.
  7. Remove the windshield washer reservoir.

    Refer to: WINDSHIELD WASHER RESERVOIR - V8 S/C 5.0L PETROL

  8. WARNING: Be prepared to collect escaping fluids.

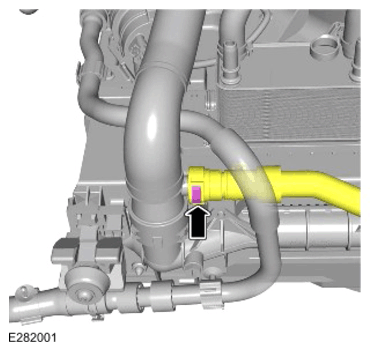

    G15303328Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the coolant hose connector.

  9. WARNING: Be prepared to collect escaping fluids.

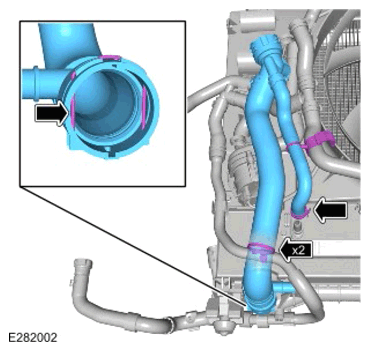

    G15303329Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the 2 coolant hose clips.
    • Release the clamp.
    • Release the coolant hose from the transmission fluid cooler.
    • Disconnect the coolant hose connector.
    • Remove the coolant hose.
  10. WARNING: Be prepared to collect escaping fluids.

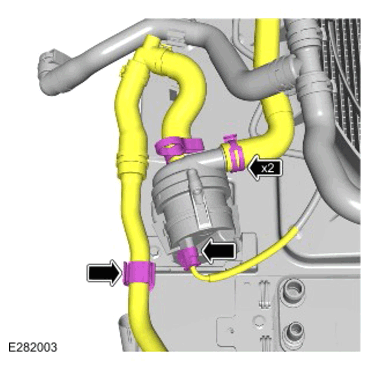

    G15303330Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the coolant hose clip.
    • Disconnect the electrical connector.
    • Release the 2 clamps.
    • Release the 2 coolant hoses.

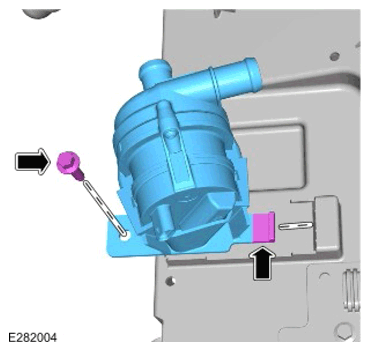

  11. G15303331Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the bolt.
    • Remove the supercharger coolant pump.
  12. NOTE: Do not disassemble further if the component is removed for access only.
    G14058310Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the clip.
    • Remove the 2 brackets.
