Engine Cooling - V8 S/C 5.0L Petrol (G2796565): Specifications

Lubricants

NOTE: Coolant must be collected into a clean container and can be reused if not contaminated.

LUBRICANTS SPECIFICATIONS

DESCRIPTION	SPECIFICATION
Coolant	Havoline Extended Life Coolant (XLC)
Coolant concentration*	50%

CAPACITIES SPECIFICATIONS

DESCRIPTION	CAPACITY
Cooling system capacity	7.81 Liters	16.5 US pint	8.2 US quart

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

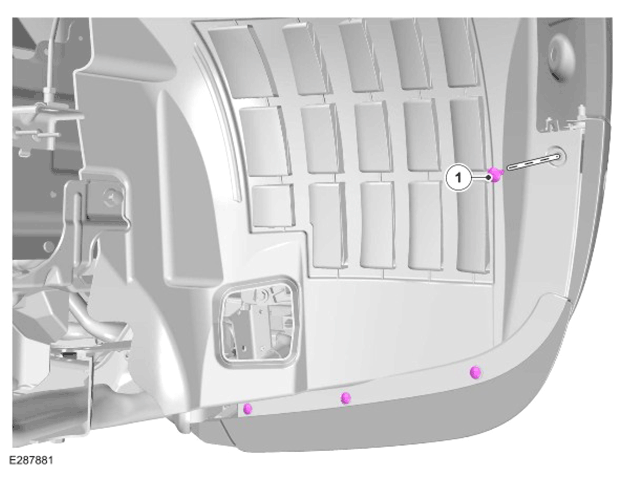

	DESCRIPTION	NM	LB-FT	LB-IN
1	Wheel arch liner front section screws	5	-	44

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

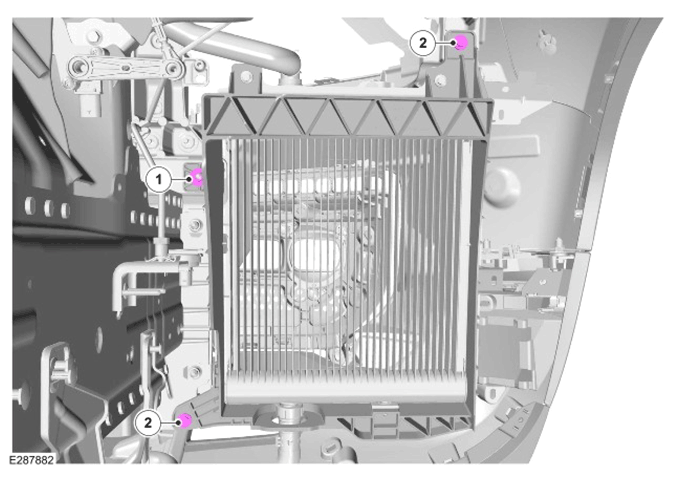

	DESCRIPTION	NM	LB-FT	LB-IN
1	Auxiliary radiator housing to body nut	9	-	80

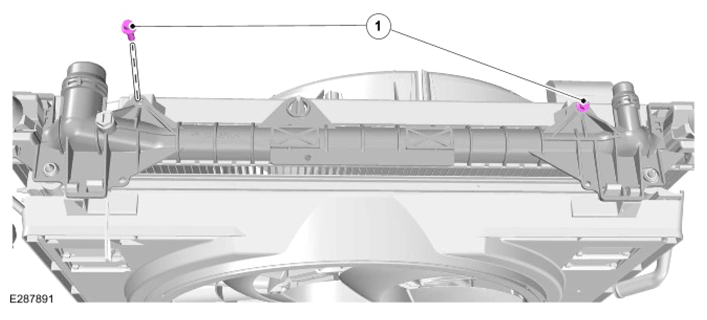

2	Auxiliary radiator housing to body bolts	9	-	80

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

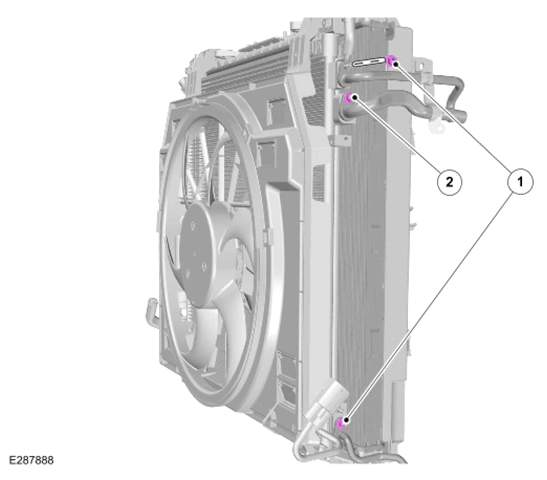

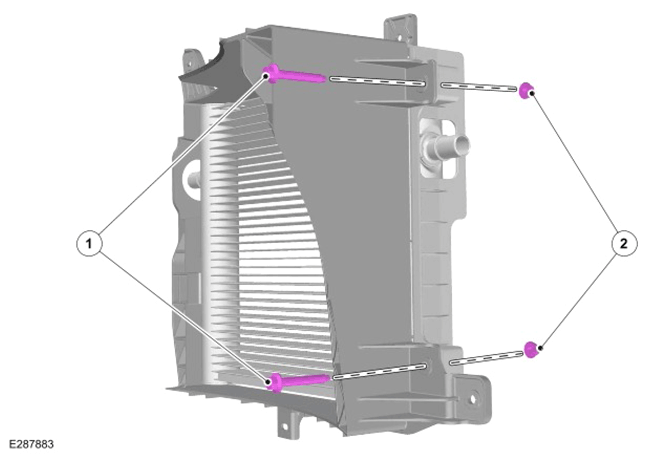

	DESCRIPTION	NM	LB-FT	LB-IN
1	Auxiliary radiator housing to auxiliary radiator bolts	9	-	80
2	Auxiliary radiator housing to auxiliary radiator nuts	9	-	80

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

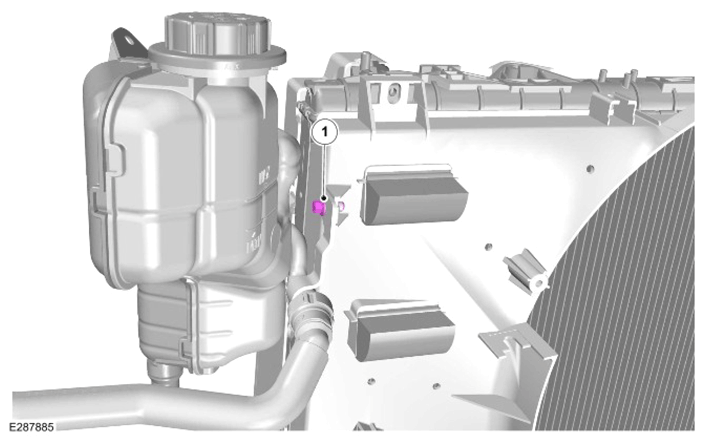

	DESCRIPTION	NM	LB-FT	LB-IN
1	Coolant expansion tank bolt	2.8	-	25

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

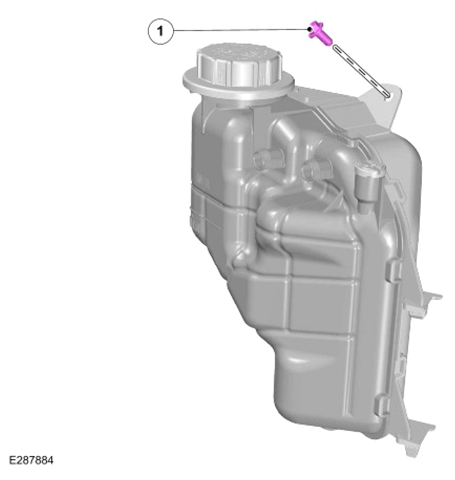

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN
1	Coolant hose bracket bolt	7	-	62

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

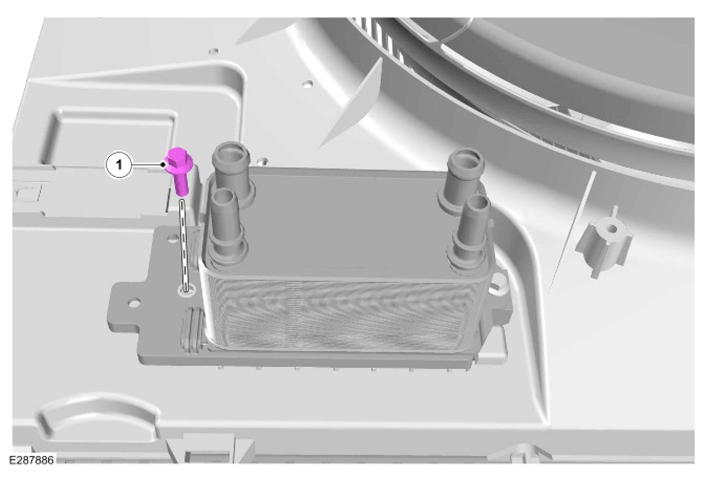

	DESCRIPTION	NM	LB-FT	LB-IN
1	Transmission fluid cooler bolt	9	-	80

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

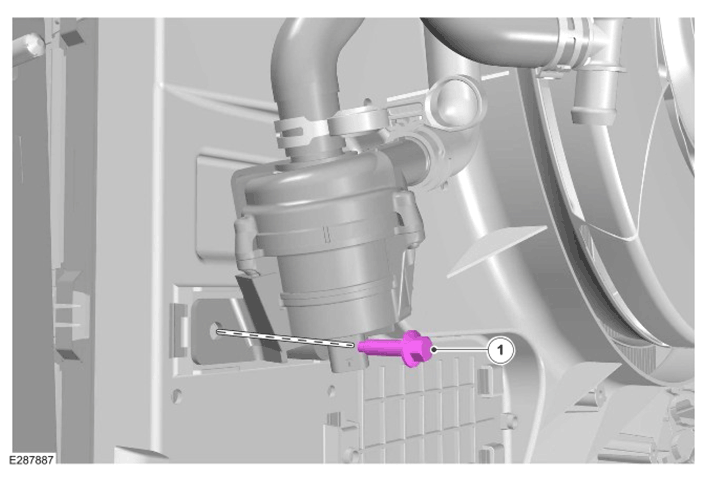

	DESCRIPTION	NM	LB-FT	LB-IN
1	Auxiliary radiator coolant pump	7	-	62

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN
1	Air Conditioning (A/C) pipes nuts	20	15	-
2	Coolant pipe nut	20	15	-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

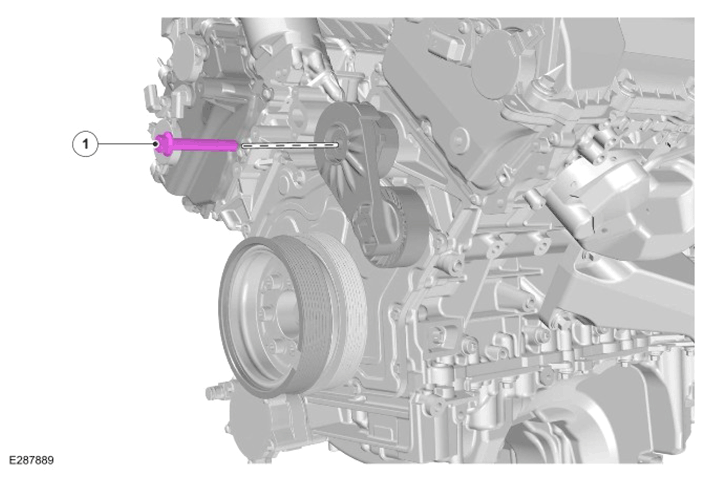

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN
1	Accessory drive belt tensioner bolt	48	35	-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

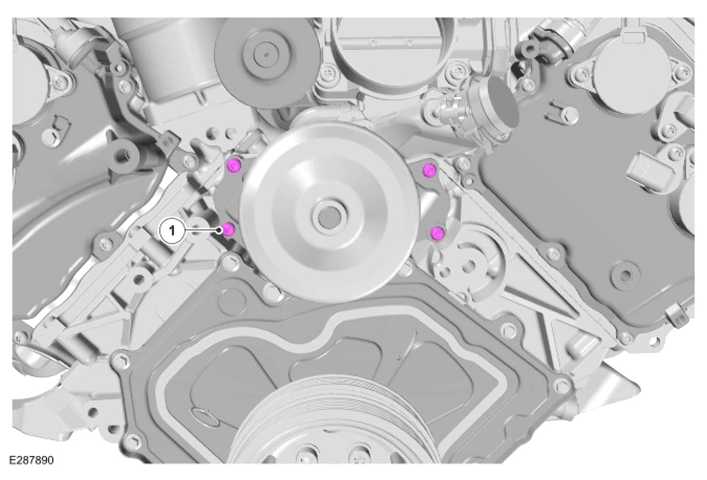

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN
1	Engine coolant pump bolts	12	9	-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN
1	Viscous cooling fan shroud lower bolts	7	-	62

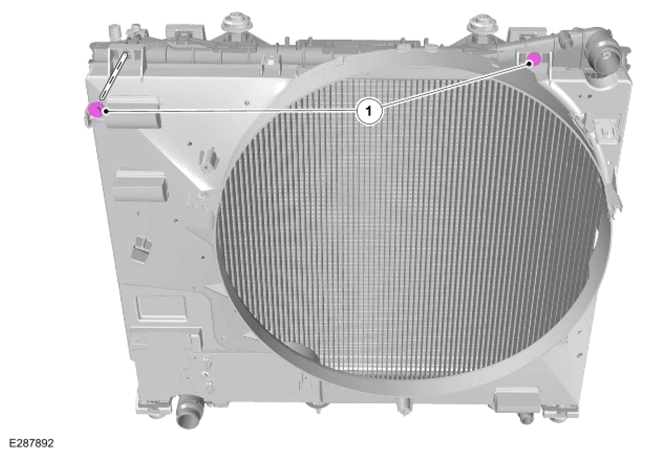

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

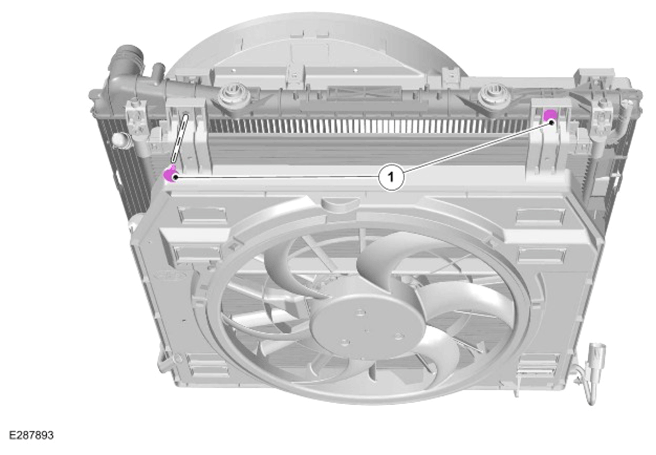

	DESCRIPTION	NM	LB-FT	LB-IN
1	Viscous cooling fan shroud upper bolts	7	-	62

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN
1	Electric cooling fan bolts	7	-	62

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

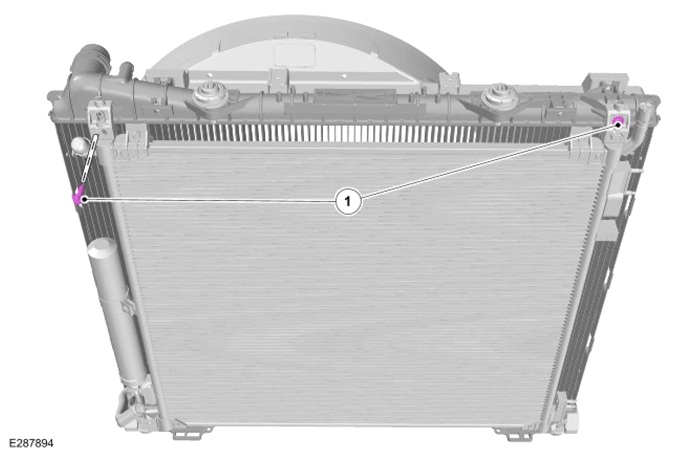

	DESCRIPTION	NM	LB-FT	LB-IN
1	A/C  condenser bolts	7	-	62

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

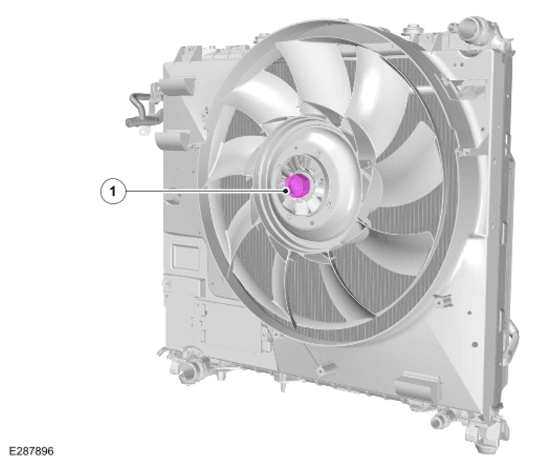

	DESCRIPTION	NM	LB-FT	LB-IN
1	Viscous cooling fan	65	48	-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

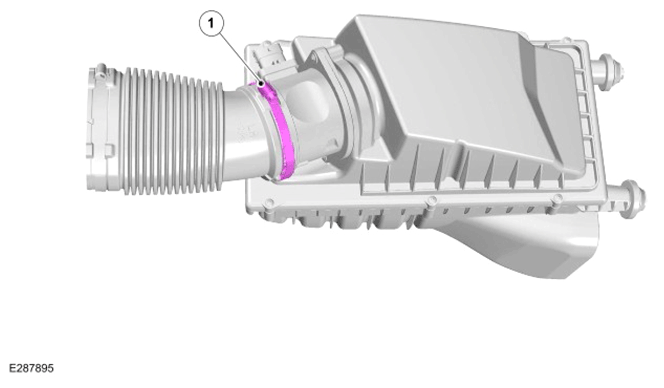

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN
1	Left air cleaner housing outlet pipe clamp	3.5	-	31

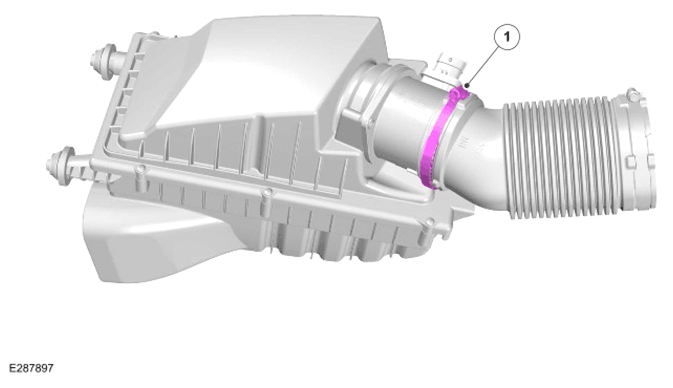

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN
1	Right air cleaner housing outlet pipe clamp	3.5	-	31

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN
1	Block heater	50	37	-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN
1	Rear coolant manifold bolts	9		80

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN
1	Cylinder head coolant outlet lower pipe bolts	12	9	-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN
1	Transmission breather pipe bolt	9	-	80
