Viscous Cooling Fan Shroud (G2805177): Installation

WARNING: This page is about a different variant/trim than selected.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

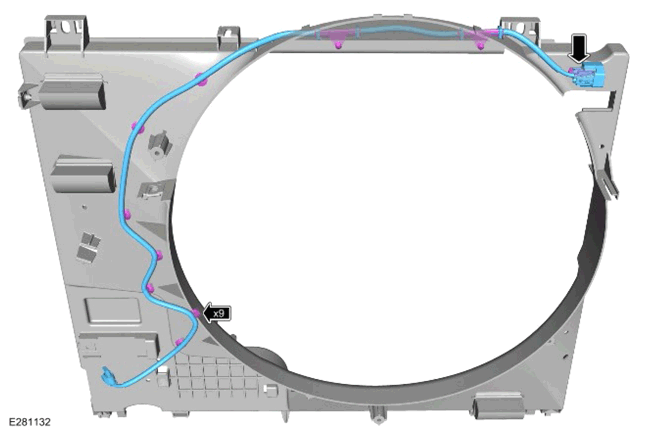

- Install the wiring harness.
- Install the 9 wiring harness clips.
- Install the electrical connector clip.
CAUTION: Make sure that the locating pegs are correctly installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the viscous cooling fan shroud.
- Secure the 2 clips.
- Install and tighten the 2 bolts.
  Torque : 7 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install and tighten the 2 bolts.

Torque : 7 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

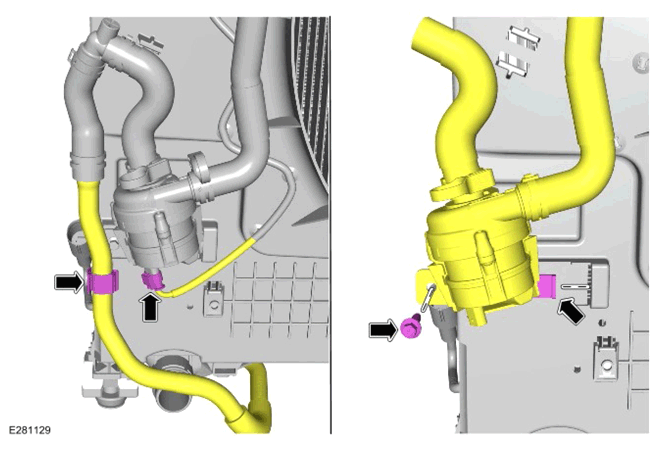

- Install the auxiliary radiator coolant pump.
- Install and tighten the bolt.
  Torque : 7 Nm
- Install the coolant hose clip.
- Connect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

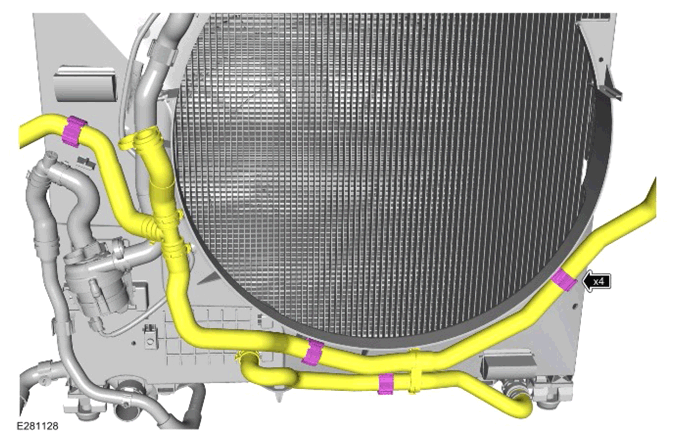

Install the 4 coolant hose clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

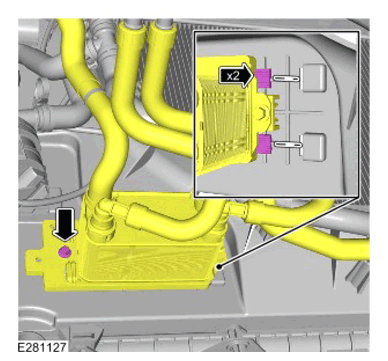

- Install the transmission fluid cooler.
- Install and tighten the bolt.
  Torque : 7 Nm
Install the windshield washer reservoir.
Refer to: WINDSHIELD WASHER RESERVOIR - V8 S/C 5.0L PETROL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

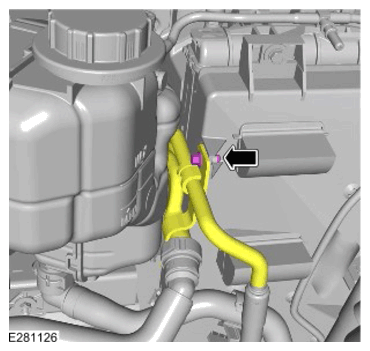

Install and tighten the bolt.

Torque : 7 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

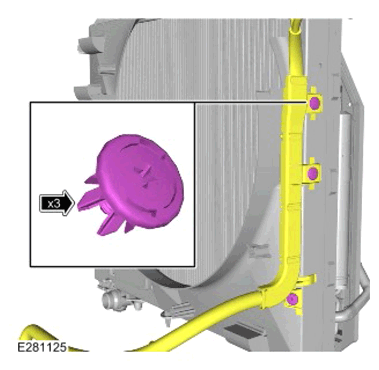

Install the 3 wiring harness bracket clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

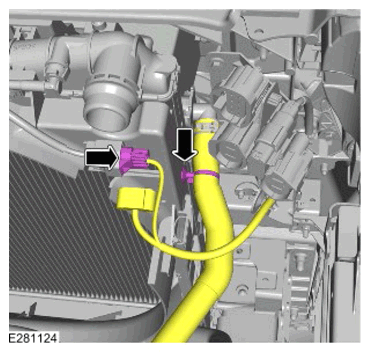

- Connect the electrical connector.
- Install the coolant hose clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

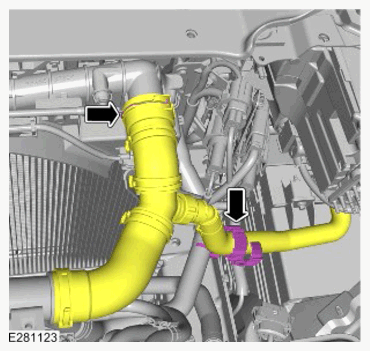

- Connect the coolant hose connector.
- Install the coolant hose clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the coolant pipe.
- Connect the 2 coolant pipe connectors.
Install the viscous cooling fan.
Refer to: VISCOUS COOLING FAN
Fill the engine cooling system with the correct amount of coolant fluid.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING
Connect the 12V system.
Refer to: 12V SYSTEM DISCONNECT AND CONNECT
