Viscous Cooling Fan (G2798406): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the 12V system.
Refer to: 12V SYSTEM DISCONNECT AND CONNECT
Remove the air cleaner outlet pipe t-connector.
Refer to: AIR CLEANER OUTLET PIPE T-CONNECTOR
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

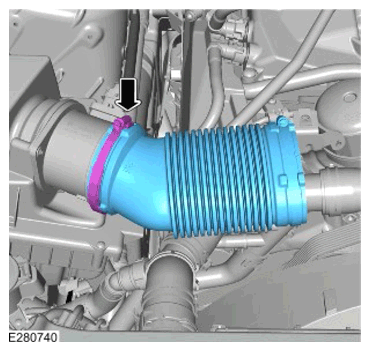

- Release the clamp.
- Remove the right clean air duct.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

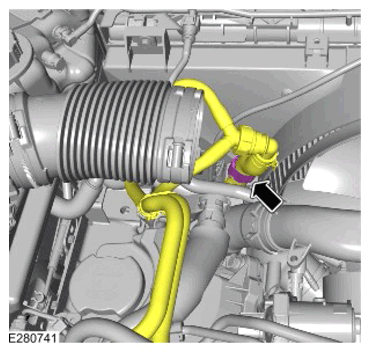

Release the coolant hose clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

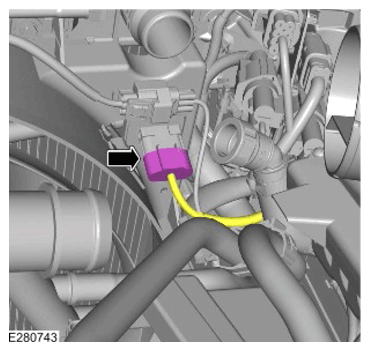

Disconnect the electrical connector from the viscous cooling fan.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

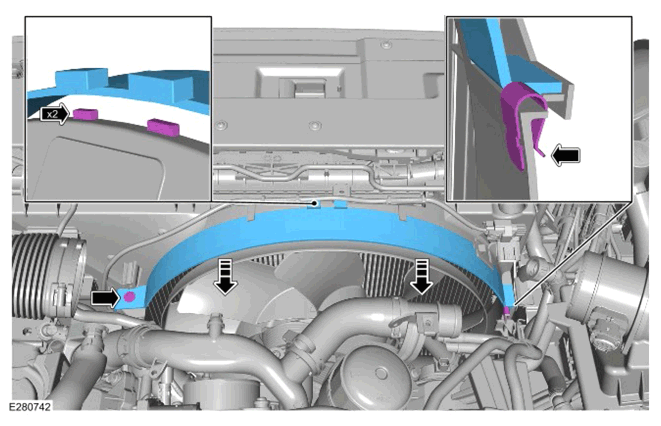

- Remove the fastener.
- Remove the clip.
- Remove the viscous cooling fan upper shroud.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

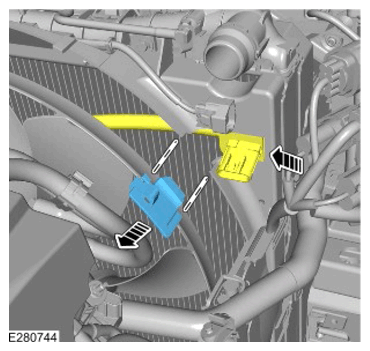

- Remove the closing panel.
- Release the viscous cooling fan electrical connector.
NOTE: Take extra care not to damage the inner cooling fan.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

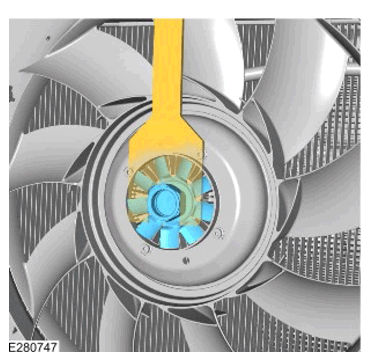

NOTE:
- The thread is left handed.
- Always protect the cooling pack elements to prevent accidental damage.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

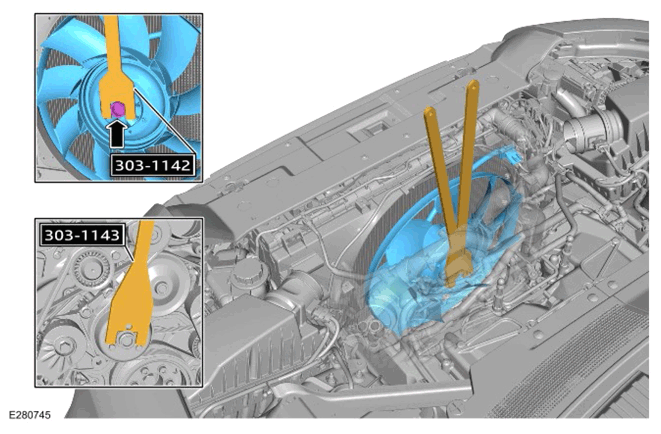

Use the 2 special tools, remove the viscous cooling fan.

Special Tool(s): 303-1142 , 303-1143
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

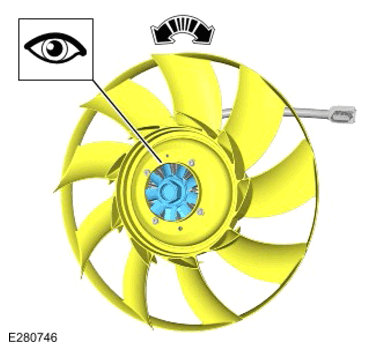

- Rotate the outer cooling fan by hand in both directions.
- Visually check the inner cooling fan for distortion or impact marks.
- If damaged, the cooling fan assembly must be replaced.
