Thermostatic Control Valve (G2394934): Removal

WARNING: This page is about a different variant/trim than selected.

WARNING: Be prepared to collect escaping coolant.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
Disconnect the startup battery ground cable.
Refer to: SPECIFICATIONS
Remove the rear coolant manifold.
Refer to: REAR COOLANT MANIFOLD
Remove the supercharger.
Refer to: SUPERCHARGER

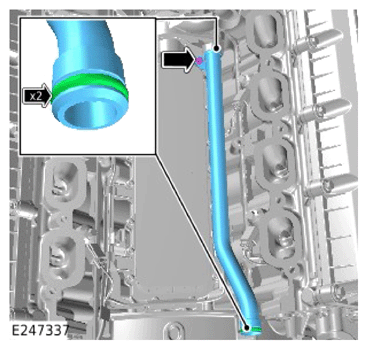

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the bolt.
- Remove the coolant pipe.
- Remove and discard the 2 O-ring seals.
NOTE: Inspect the O-ring seals for wear and damage, if new O-ring seals are required replace the thermostatic control valve.

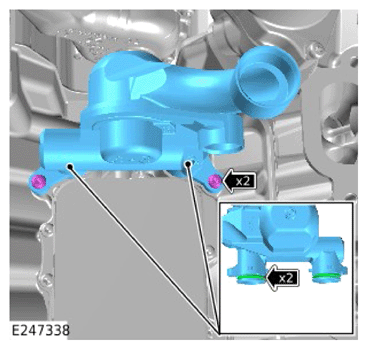

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 bolts.
- Remove the thermostatic control valve.
