Thermostat Housing (G2796577): Installation

WARNING: This page is about a different variant/trim than selected.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

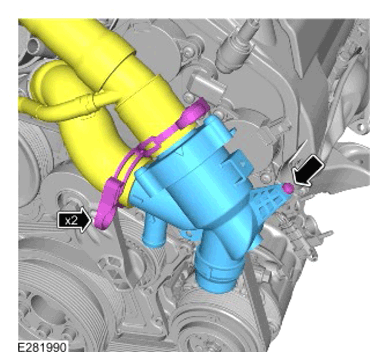

- Install the thermostat housing.
- Connect the 2 coolant hoses.
- Install the 2 coolant hose clamps.
- Install the tighten the bolt.
  Torque : 10 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Connect the coolant hose connector.
- Install the coolant hose.
- Install the clamp.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the wiring harness clip.
- Connect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

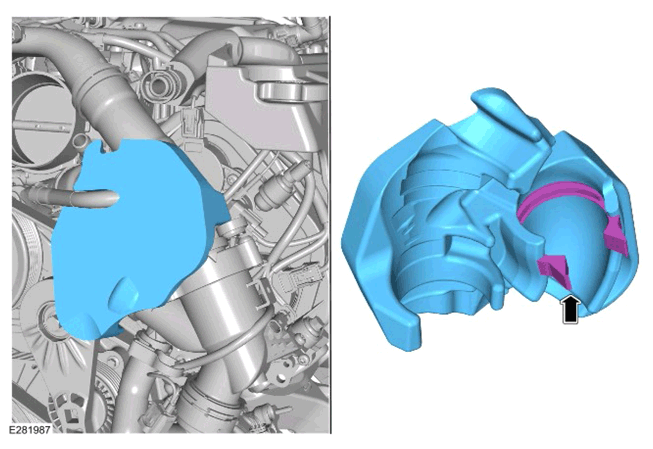

Install the cover at the clip.
CAUTION: Take extra care not to damage the component.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

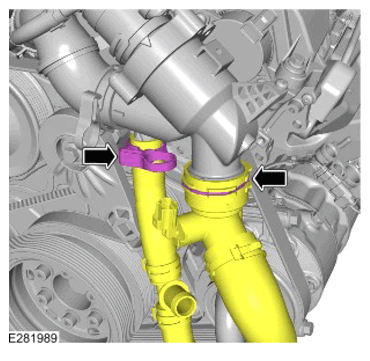

- Install the coolant pipe.
- Connect the 2 coolant pipe connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

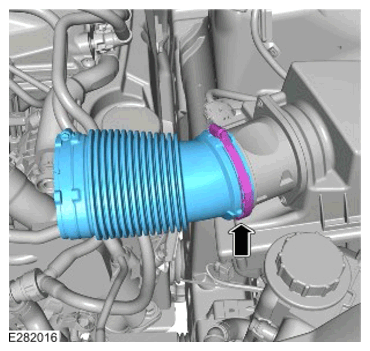

- Install the left clean air duct.
- Tighten the clamp.
  Torque : 3.5 Nm
Install the air cleaner outlet pipe t-connector.
Refer to: AIR CLEANER OUTLET PIPE T-CONNECTOR
Fill the engine cooling system with the correct amount of coolant fluid.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING
Connect the 12V system.
Refer to: 12V SYSTEM DISCONNECT AND CONNECT
