Coolant Expansion Tank (G2796572): Installation

WARNING: This page is about a different variant/trim than selected.
  1. G15324896Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the blanking cap.

  2. G15324672Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the coolant expansion tank.
    • Connect the electrical connector.
    • Connect the coolant hose.
  3. G15324671Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the coolant expansion tank to the original position.
    • Install and tighten the bolt.

      Torque  : 2.8 Nm

  4. CAUTION: Take extra care not to damage the component.

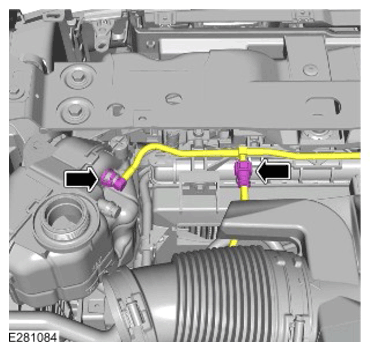

    G15303147Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Connect the 2 coolant pipe connectors.

  5. Install the left air cleaner.

    Refer to: LEFT AIR CLEANER

  6. Fill the engine cooling system with the correct amount of coolant fluid.

    Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING

  7. G15324537Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the engine compartment front cover.
    • Install the 8 fasteners.
