Block Heater (G2796576): Installation
WARNING: This page is about a different variant/trim than selected.
- CAUTION:
- Make sure that the surface is clean and free of foreign material.
- Make sure that the block heater cable is oriented vertically downward away from the exhaust manifold.

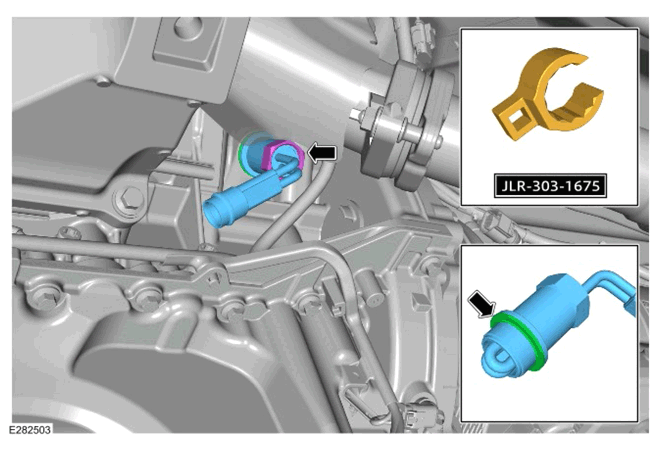

- Install the new gasket.
Renew Part: Block heater gasket - Cold markets only Quantity: 1 .
- Use the special tool to install and tighten the block heater.
Special Tool(s): JLR-303-1675
Torque : 50 Nm

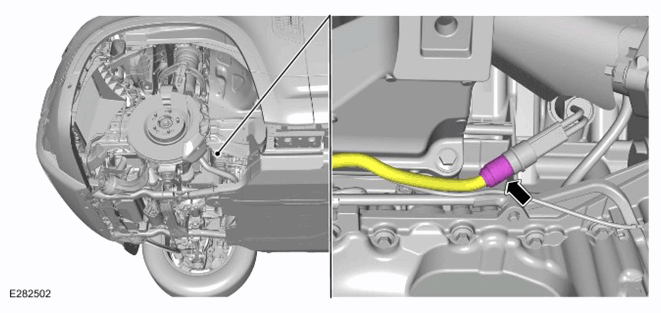

Connect the electrical connector to the block heater.
- Install the front left wheel arch liner.
Refer to: FRONT WHEEL ARCH LINER
- Fill the engine cooling system with the correct amount of coolant fluid.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING
- Connect the 12V system.
Refer to: 12V SYSTEM DISCONNECT AND CONNECT
