Engine Cooling - V8 S/C 5.0L Petrol (G2796566): Description: Radiator

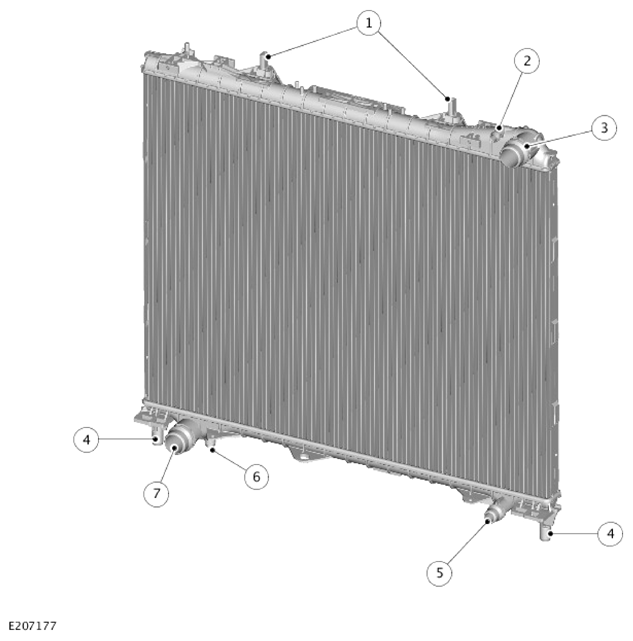

| ITEM | DESCRIPTION |
|---|---|
| 1 | Top mounts |
| 2 | Hose connection - Coolant expansion tank |
| 3 | Hose connection - Radiator upper hose |
| 4 | Lower mounts |
| 5 | ATF cooler hose connection |
| 6 | Drain screw |
| 7 | Hose connection - Radiator lower hose |
The radiator is a vertical flow type with an aluminum core and plastic end tanks. The radiator is located in the vehicle by bushes attached to the end tanks. The lower bushes are installed in the front subframe. The upper bushes are installed in the front end carrier.
A low temperature zone is located at the left side of the radiator and provides cooled engine coolant for the ATF cooler.
Upper and lower hose connections are incorporated into the upper and lower end tanks respectively. The lower end tank also incorporates a drain screw, and a connection for the supply hose of the ATF cooler. The upper end tank incorporates a connection for a vent hose to the coolant expansion tank. The end tanks also incorporate mounting points for viscous and electric cooling fan shrouds, and the Air Conditioning (A/C) condenser.
