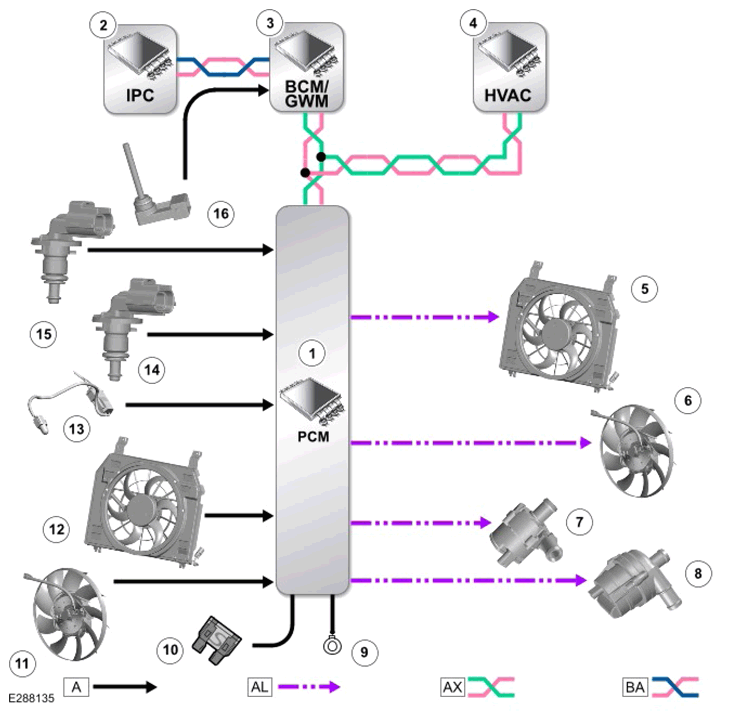

Control Diagram
WARNING: This page is about a different variant/trim than selected.
A = HARDWIRED: AL = PWM : AX = FLEXRAY: BA = HS CAN HMI SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | PCM |
| 2 | IPC |
| 3 | BCM /GWM |
| 4 | HVAC |
| 5 | Electric cooling fan |
| 6 | VCFCM |
| 7 | Auxiliary coolant pump |
| 8 | Charge air coolant pump |
| 9 | Ground |
| 10 | Power supply |
| 11 | Speed signal - Viscous cooling fan |
| 12 | Speed signal - Electric cooling fan |
| 13 | Ambient Air Temperature (AAT) sensor |
| 14 | ECT sensor - Front |
| 15 | ECT) sensor - Rear |
| 16 | Engine coolant level sensor |
