Turbocharger (G2341936): Description: HEATSHIELDS
WARNING: This page is about a different variant/trim than selected.

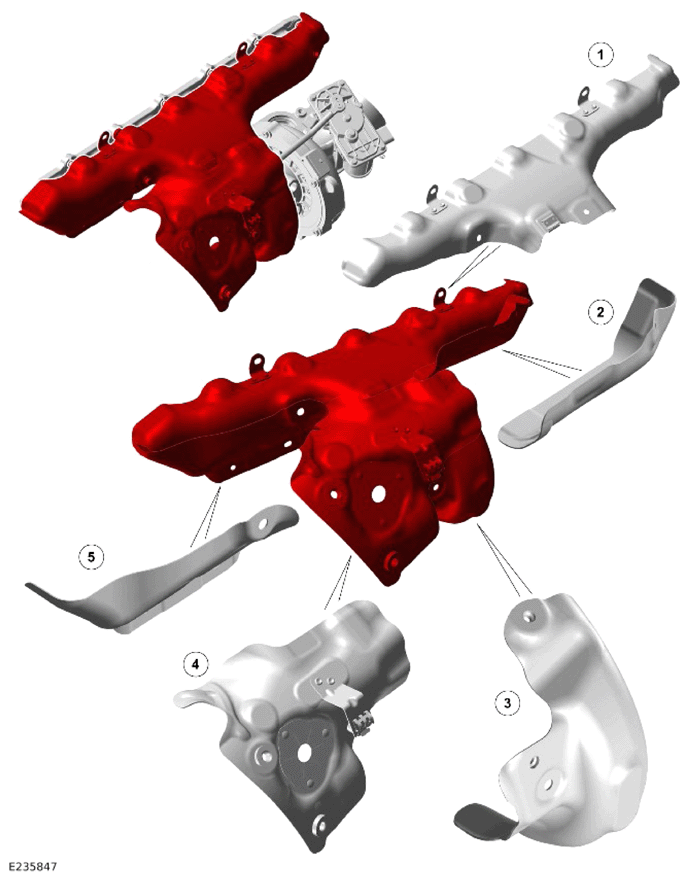

| ITEM | DESCRIPTION |
|---|---|
| 1 | Exhaust manifold heatshield |
| 2 | Exhaust manifold right lower heatshield |
| 3 | Right heatshield - Turbocharger |
| 4 | Left heatshield - Turbocharger |
| 5 | Exhaust manifold left lower heatshield |
The heatshields are installed over the turbocharger to protect the surrounding components from radiated heat. The heatshields also prevent accidental contact with the hot exhaust components.
