Component Location 1 Of 1

WARNING: This page is about a different variant/trim than selected.

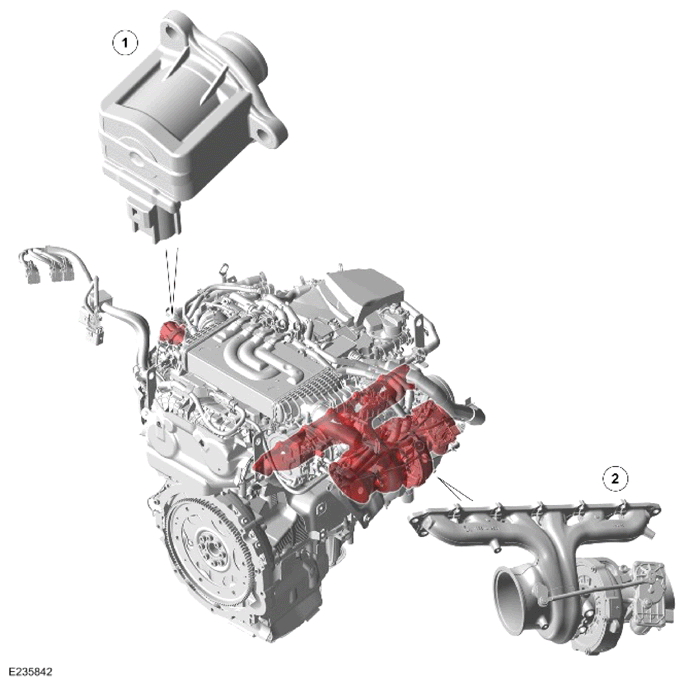

G14059841Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Compressor Recirculation Valve (CRV)
2 Turbocharger
