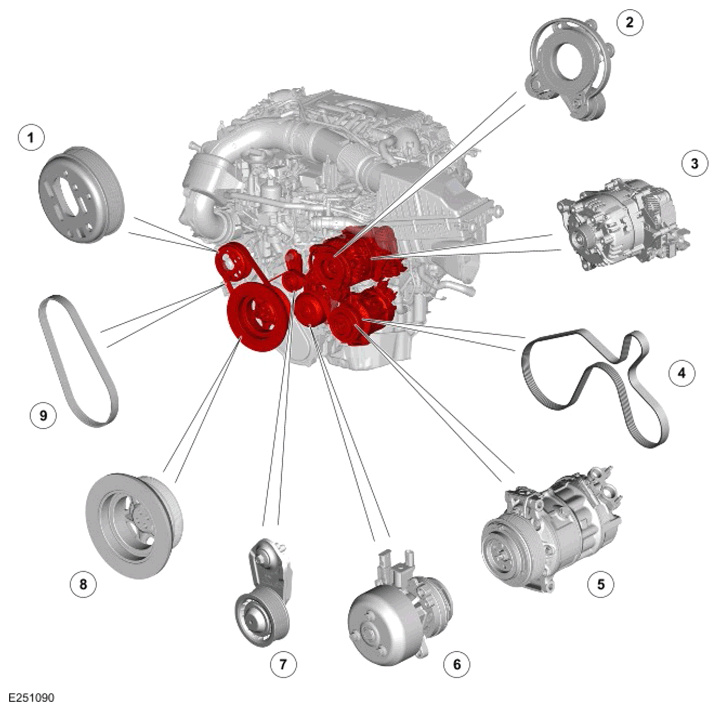

Component Location
WARNING: This page is about a different variant/trim than selected.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| 1 |
Viscous cooling fan pulley |
| 2 |
Belt Integrated Starter Generator (BISG) drive belt tensioner |
| 3 |
BISG |
| 4 |
BISG drive belt |
| 5 |
Air Conditioning (A/C) compressor |
| 6 |
Coolant pump |
| 7 |
Idler pulley |
| 8 |
Crankshaft pulley |
| 9 |
Viscous cooling fan drive belt |
