BISG Drive Belt TENSIONER
WARNING: This page is about a different variant/trim than selected.
WARNING:
The BISG
belt tensioner moves during operation of the BISG
.

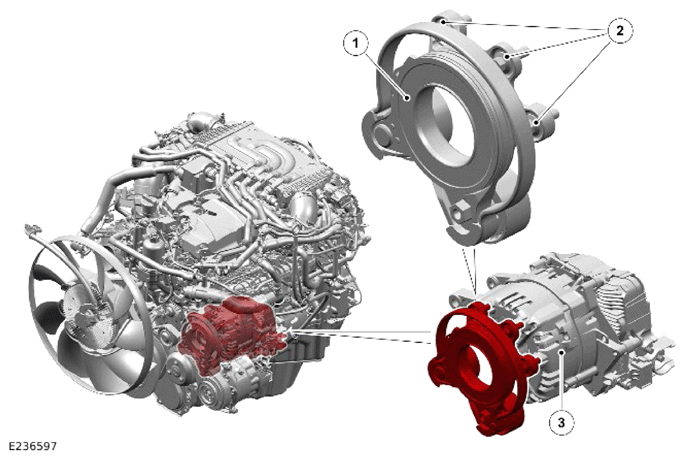

| ITEM | DESCRIPTION |
|---|---|
| 1 | BISG drive belt tensioner |
| 2 | Mounting bolt (quantity 3) |
| 3 | BISG |
The BISG has a BISG drive belt tensioner located on the pulley side of the BISG . The BISG drive belt tensioner is mounted by 3 bolts onto the BISG .
The BISG drive belt tensioner moves when the BISG changes its operation modes.

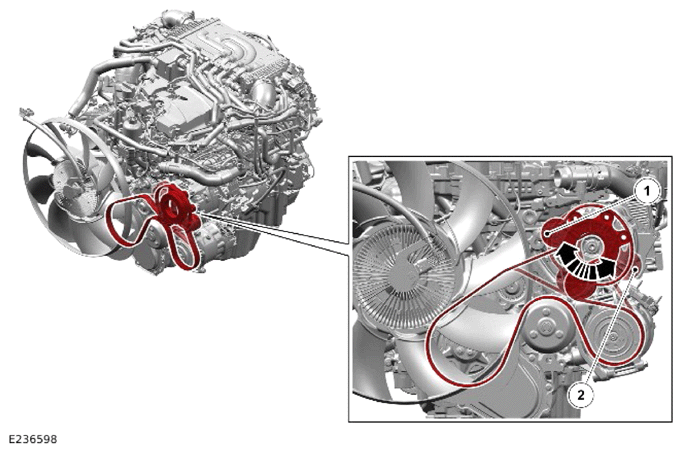

| ITEM | DESCRIPTION |
|---|---|
| 1 | BISG drive belt tensioner position 1 |
| 2 | BISG drive belt tensioner position 2 |
