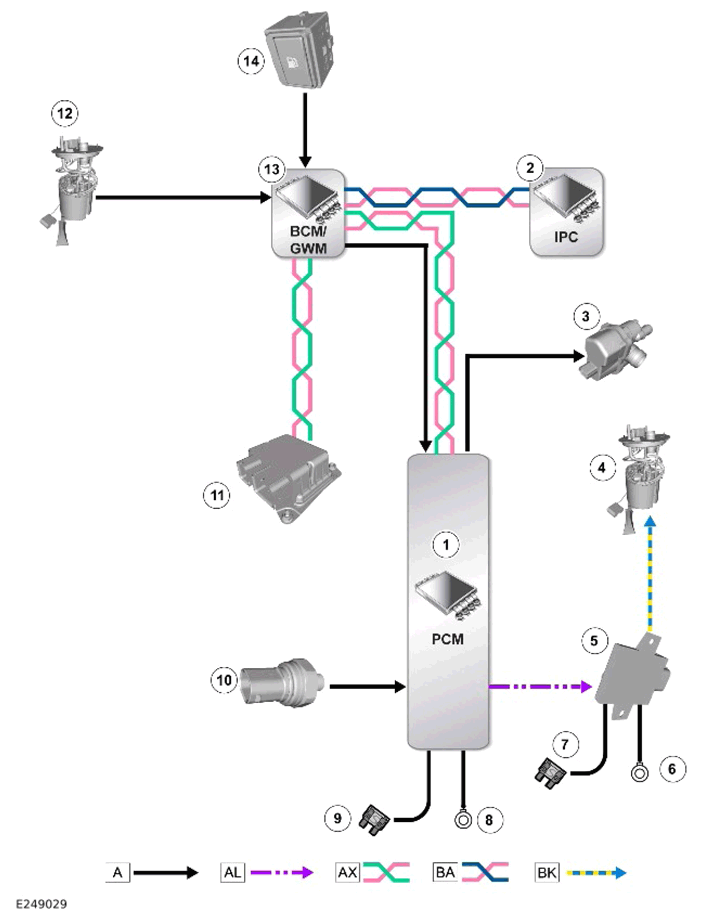

Control Diagram - 1 Of 1
WARNING: This page is about a different variant/trim than selected.
A = HARDWIRED: AL = PWM: AX = FLEXRAY: BA = HS CAN HMI SYSTEMS BUS: BK = LOW VOLTAGE (3-PHASE).
| ITEM | DESCRIPTION |
|---|---|
| 1 | PCM |
| 2 | IPC |
| 3 | DMTL pump (if equipped) |
| 4 | Fuel pump module - LP pump |
| 5 | FPDM |
| 6 | Ground |
| 7 | Power supply |
| 8 | Ground |
| 9 | Power supply |
| 10 | Low fuel pressure sensor |
| 11 | RCM - Crash signal |
| 12 | Fuel pump module - Fuel level signal |
| 13 | BCM /GWM |
| 14 | Release switch - Fuel flap |
