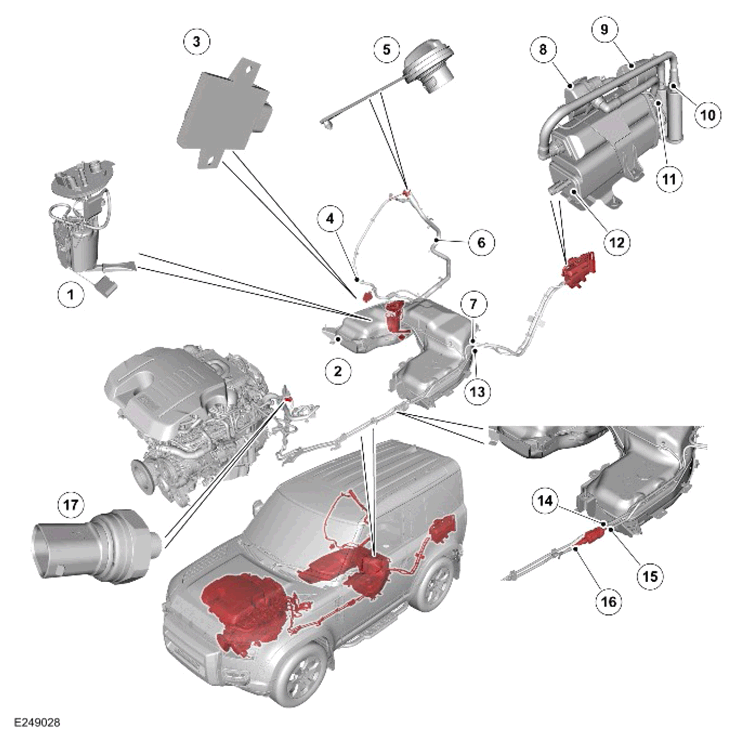

Component Location - 4 Of 5 - North AMERICAN Specification And China Vehicles Only - Vehicle With 3 Doors
WARNING: This page is about a different variant/trim than selected.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Fuel pump module |
| 2 | Fuel tank assembly |
| 3 | FPDM |
| 4 | Breather hose - Fuel tank to fuel filler neck |
| 5 | Fuel filler cap |
| 6 | Fuel filler hose |
| 7 | Breather pipe - Fuel tank to evaporative emission canister |
| 8 | DMTL pump |
| 9 | Evaporative emission canister filter |
| 10 | Secondary evaporative emission canister |
| 11 | DMTL pump filter |
| 12 | Evaporative emission canister |
| 13 | Purge line - Evaporative emission canister to purge valve |
| 14 | Fuel delivery line - Fuel tank to engine |
| 15 | Purge line - Evaporative emission canister to purge valve |
| 16 | Purge damper |
| 17 | Low fuel pressure sensor |
