Direct Current To Direct Current Converter Air Duct (G2422549): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

The following step(s) applies to:

All vehicles

Power down the Mild Hybrid Electric Vehicle (MHEV) system.
Refer to: MHEV POWER DOWN/UP

The following step(s) applies to:

Vehicles with occasional rear seats
Remove the third row seats.
Refer to: THIRD ROW SEAT

The following step(s) applies to:

All vehicles
Remove the left loadspace trim panel.
Refer to: LEFT LOADSPACE TRIM PANEL - [+] 7 SEAT CONFIGURATION, 110

Refer to: LEFT LOADSPACE TRIM PANEL - 110, VEHICLES WITH: 5 SEATS

Refer to: LEFT LOADSPACE TRIM PANEL - 90
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

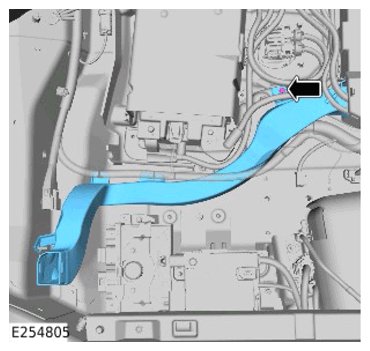

Remove the Direct Current to Direct Current (DC/DC) upper air duct.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

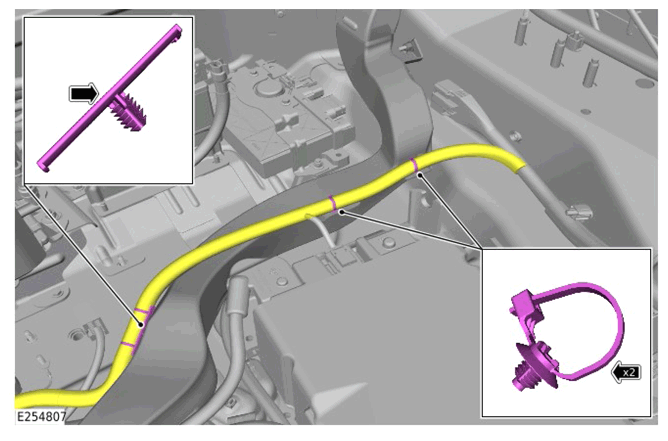

Release the 3 wiring harness clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

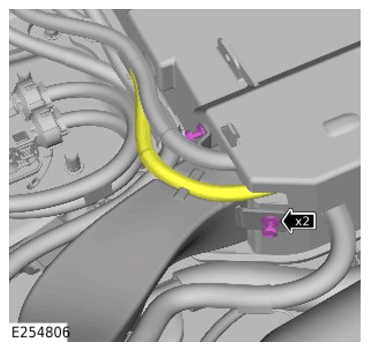

- Remove the 2 clips from the DC/DC cover.
- Reposition the wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

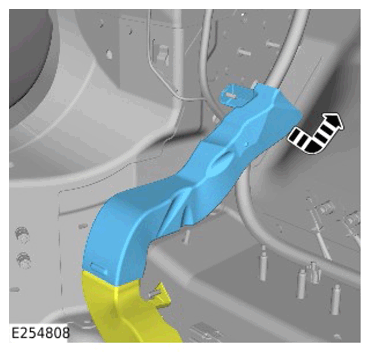

- Remove the bolt.
- Remove the DC/DC lower air duct.
