MHEV Junction Box - Front
WARNING: This page is about a different variant/trim than selected.

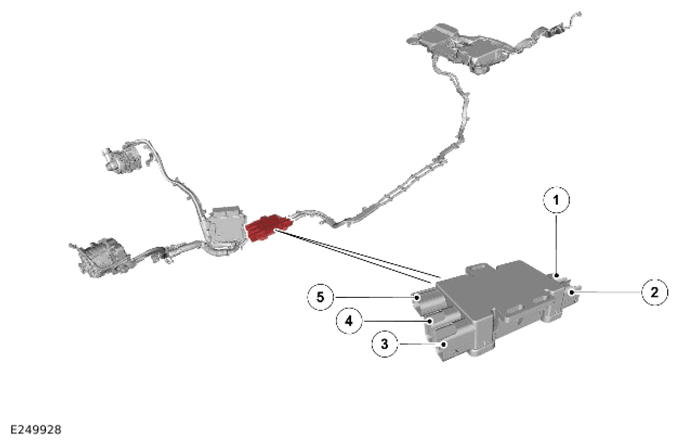

| ITEM | DESCRIPTION |
|---|---|
| 1 | MHEV cable - To rear MHEV junction box connector |
| 2 | MHEV cable - To rear MHEV junction box connector |
| 3 | MHEV cable - To BISG |
| 4 | MHEV cable - To BISG |
| 5 | MHEV cable - To electric supercharger |
The front MHEV junction box is located under the floorpan on the left. The front MHEV junction box is attached to the floorpan with 3 bolts.
The front MHEV junction box has 2 MHEV cable connections from the following:
- BISG
- Electric supercharger.
The main cable runs from the BISG to the rear MHEV junction box are connected by non fused bus bars. The connection to the electric supercharger incorporates a non serviceable 100A fuse.
