Viscous Cooling Fan Shroud (G2413289): Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION: Be prepared to collect escaping coolant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2-post lift.
Refer to: JACKING AND LIFTING
Disconnect the startup battery ground cable.
Refer to: SPECIFICATIONS
Remove the viscous cooling fan.
Refer to: VISCOUS COOLING FAN
Remove the charge air cooler coolant pump.
Refer to: CHARGE AIR COOLER COOLANT PUMP
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the 3 wiring harness clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the 2 wiring harness clips.
- Position the wiring harness bracket to one side.
CAUTION: Be prepared to collect escaping coolant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

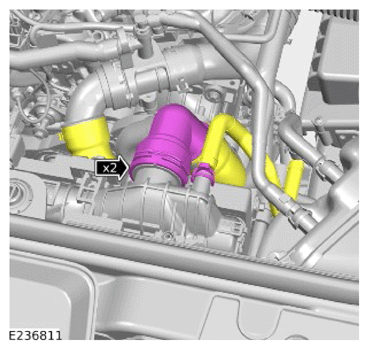

- Release the 2 coolant hoses.
- Position the 2 coolant hoses to one side.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

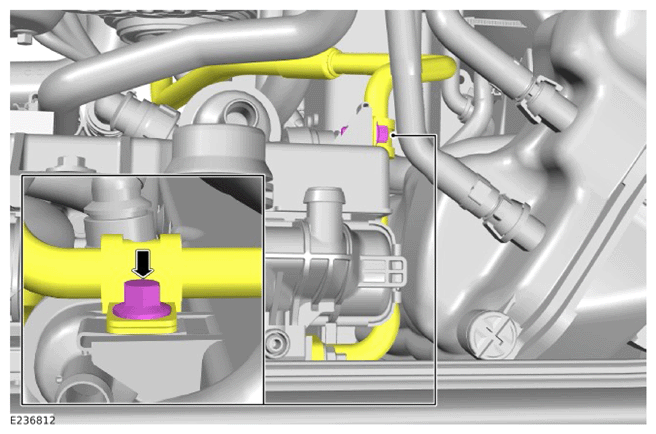

Remove the Air Conditioning (A/C) pipe bracket bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the bolt.
- Position the degas swirlpot to one side.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the clip.
- Release the engine coolant hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 2 bolts.
CAUTION: Take care no to damage the surrounding components.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

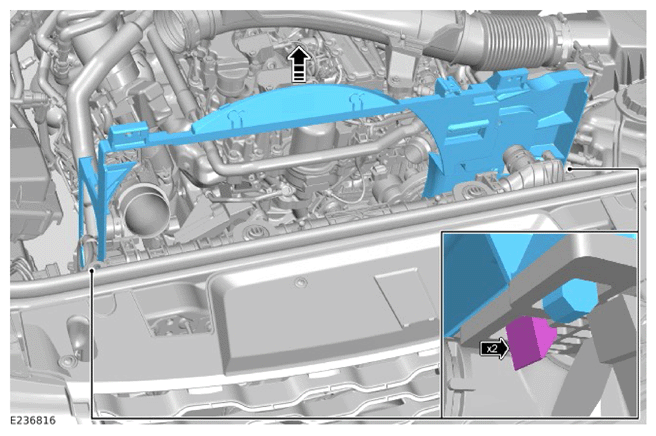

Remove the viscous cooling fan shroud.
