Charge Air Cooler Coolant Pump (G2423958): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: 12V SYSTEM DISCONNECT AND CONNECT
Partially drain the cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING
Raise and support the vehicle on a suitable 2-post lift.
Refer to: JACKING AND LIFTING
Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD
CAUTION: Be prepared to collect escaping coolant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

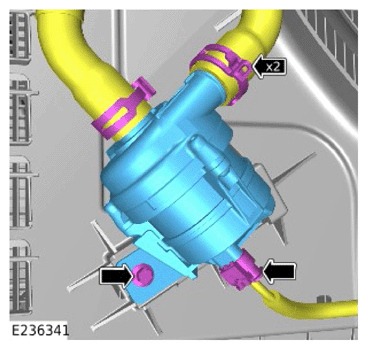

- Release the 2 clamps.
- Disconnect the 2 coolant hoses.
- Disconnect the electrical connector.
- Remove the bolt.
- Remove the charge air cooler coolant pump.
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

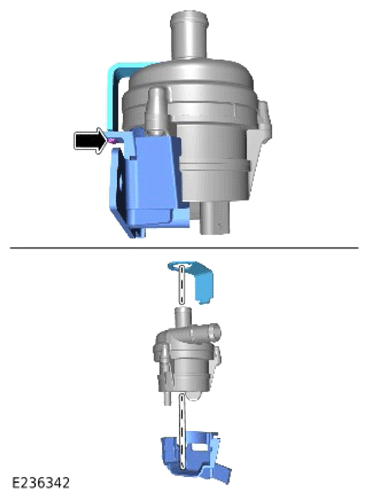

- Release the clip.
- Remove the 2 brackets.
