Oil Cooler
WARNING: This page is about a different variant/trim than selected.

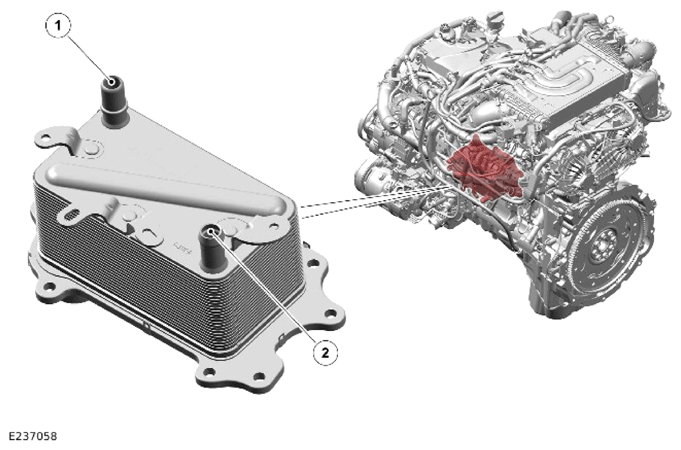

| ITEM | DESCRIPTION |
|---|---|
| 1 | Hose connection - Engine coolant outlet |
| 2 | Hose connection - Engine coolant inlet |
The oil cooler is installed at the left side of the cylinder block. The oil cooler is an aluminum housing comprising louvred fins and plates. The plates allow a cross-flow of engine oil and engine coolant through the oil cooler. The engine coolant decreases the temperature of the hot engine oil in the oil cooler. The engine oil and engine coolant do not mix in the oil cooler.
