Electric Cooling Fan
WARNING: This page is about a different variant/trim than selected.

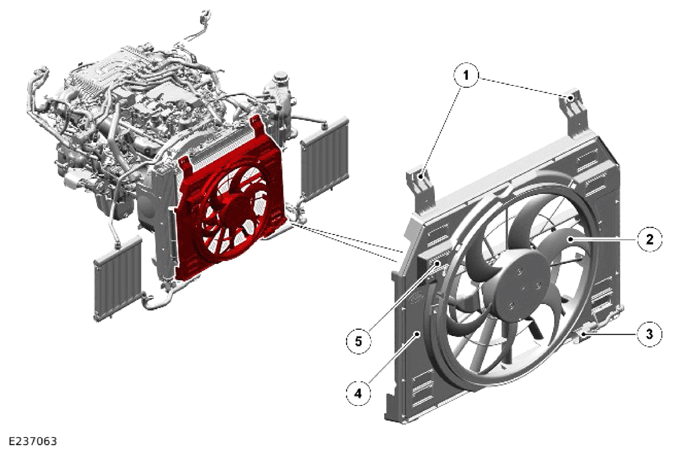

| ITEM | DESCRIPTION |
|---|---|
| 1 | Mounting bracket (quantity 2) |
| 2 | Electric cooling fan blade (quantity 6) |
| 3 | Electrical connector |
| 4 | Electric cooling fan shroud |
| 5 | Electric cooling fan air flow flap (quantity 8) |
The electric cooling fan is installed in the front of the Air Conditioning (A/C) condenser. The electric cooling fan is operated by the electric cooling fan control module which is integrated into the electric cooling fan motor. The Powertrain Control Module (PCM) controls the electric cooling fan control module with a Pulse Width Modulation (PWM) signal.
The electric cooling fan control module is provided with:
- Power supply from the Engine Junction Box (EJB).
- Ignition signal from the PCM relay in the EJB.
- PWM signal from the PCM.
- Ground.
