Charge Air Cooler
WARNING: This page is about a different variant/trim than selected.

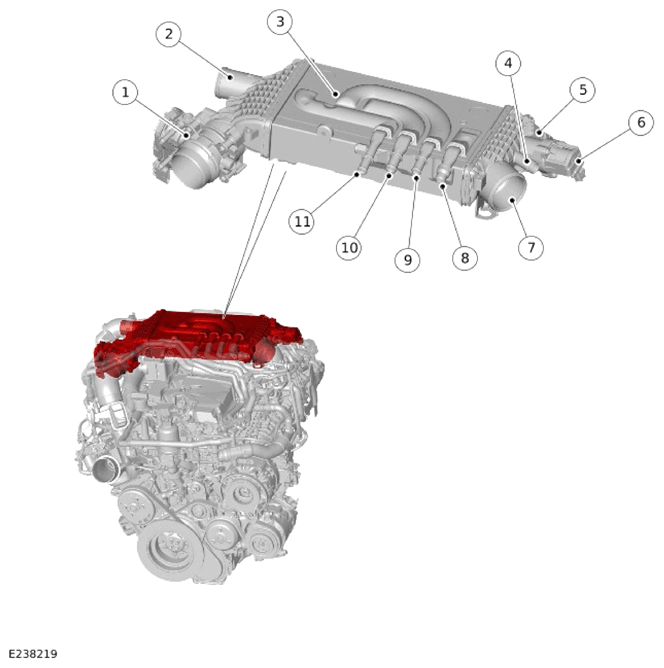

| ITEM | DESCRIPTION |
|---|---|
| 1 | Electric supercharger bypass valve |
| 2 | Electric supercharger inlet |
| 3 | Charge air cooler |
| 4 | Air intake system hose connection |
| 5 | Charge air pressure and temperature sensor |
| 6 | Compressor Bypass Valve (CBV) |
| 7 | Electric throttle hose connection |
| 8 | Coolant inlet from low temperature radiator |
| 9 | Coolant outlet to low temperature radiator |
| 10 | Coolant inlet from engine |
| 11 | Coolant outlet to main radiator |
The charge air cooler is an air-to-liquid heat exchanger, providing charge air cooling in combination with an electrical coolant pump.
For additional information, refer to: DESCRIPTION AND OPERATION
