Auxiliary Coolant Pump
WARNING: This page is about a different variant/trim than selected.

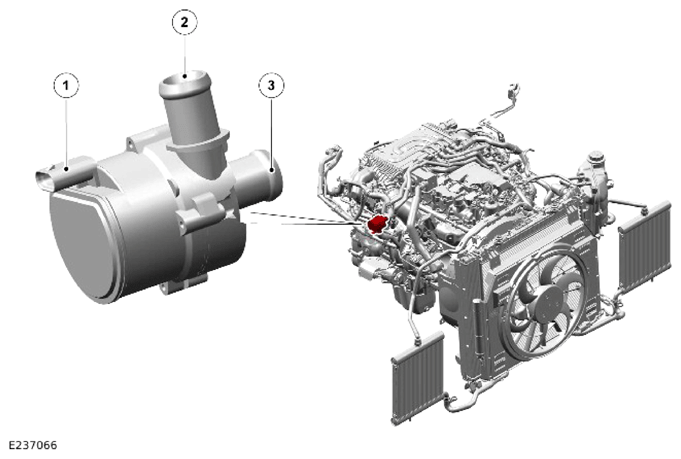

| ITEM | DESCRIPTION |
|---|---|
| 1 | Electrical connector - Powertrain Control Module (PCM) |
| 2 | Hose connection - Engine coolant inlet |
| 3 | Hose connection - Engine coolant outlet |
The auxiliary coolant pump is an electric pump attached in a bracket, in the right side of the engine compartment. When the engine is turned off, the auxiliary coolant pump provides engine coolant flow to prevent engine coolant boiling in the turbocharger. The auxiliary coolant pump also pumps the engine coolant from the cylinder block to the heater core.
The auxiliary coolant pump has power supply from a relay in the Engine Junction Box (EJB).
The Powertrain Control Module (PCM) controls the operation of the auxiliary coolant pump. The PCM controls the auxiliary coolant pump with a Pulse Width Modulation (PWM) signal.
