Right Valve Cover (G2796550): Removal

WARNING: This page is about a different variant/trim than selected.
CAUTION: Be prepared to collect escaping oil.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Raise and support the vehicle with a 2 post lift.

    Refer to: JACKING AND LIFTING

  2. Disconnect the 12 V system.

    Refer to: 12V SYSTEM DISCONNECT AND CONNECT

  3. Remove the supercharger.

    Refer to: SUPERCHARGER

  4. Remove the right air cleaner outlet pipe.

    Refer to: RIGHT AIR CLEANER OUTLET PIPE

  5. Remove the right fuel injectors.

    Refer to: FUEL INJECTORS

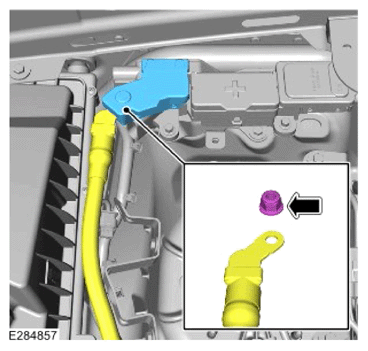

  6. G15322089Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the cover.
    • Remove the nut.
    • Disconnect and release the cable.

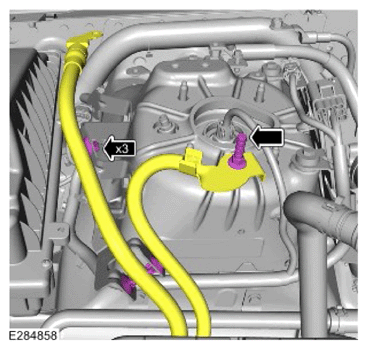

  7. G15322090Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the bolt.
    • Release the 3 clips.
    • Release the 2 cables and position to one side.

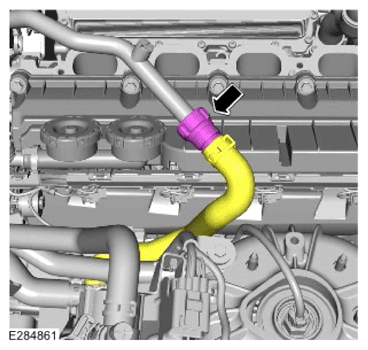

  8. CAUTION: Be prepared to collect escaping coolant.
    G15322091Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the coolant hose connector.
    • Position the coolant hose away from the engine.

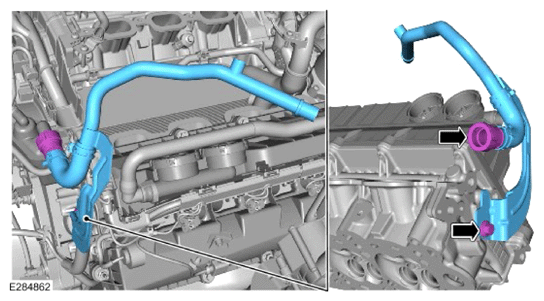

  9. G15322092Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the coolant hose connector.
    • Remove the bolt.
    • Remove the coolant pipe assembly.

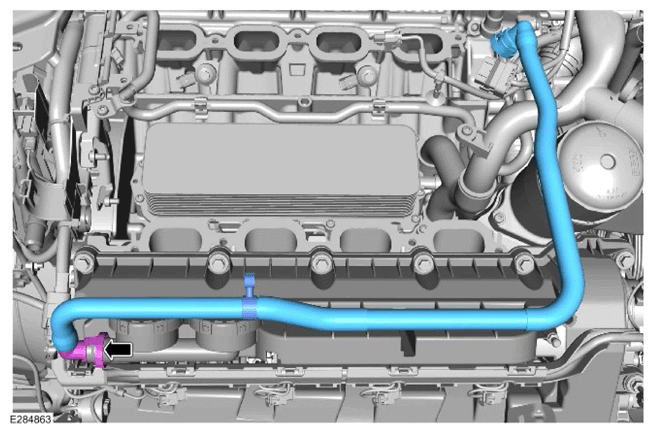

  10. G15322093Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the part load breather pipe connector.
    • Remove the part load breather pipe.

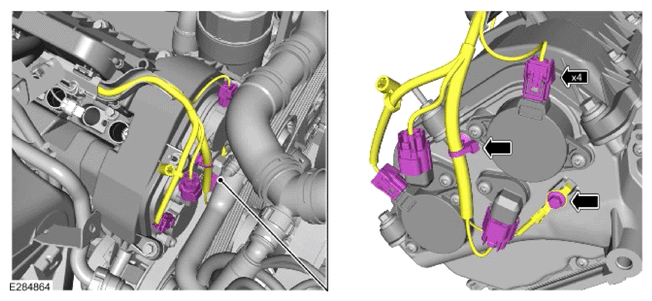

  11. G15322094Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the bolt.
    • Disconnect the 4 electrical connectors.
    • Release the wiring harness clip.
    • Release the wiring harness and reposition away from the right valve cover.

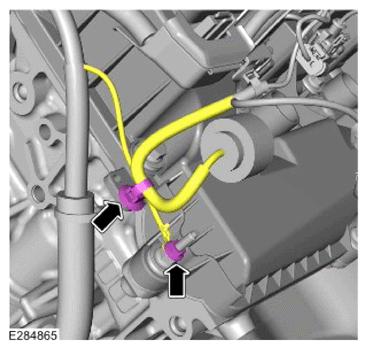

  12. G15322095Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the nut.
    • Release the wiring harness clip.
    • Release the wiring harness and reposition away from the right valve cover.

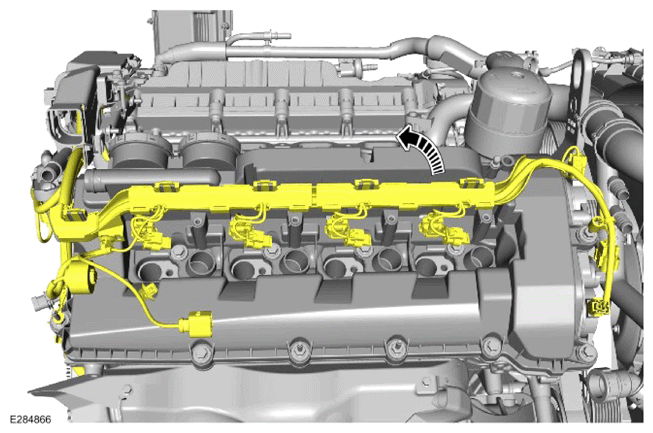

  13. G15322096Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the wiring harness and reposition away from the right valve cover as illustrated.

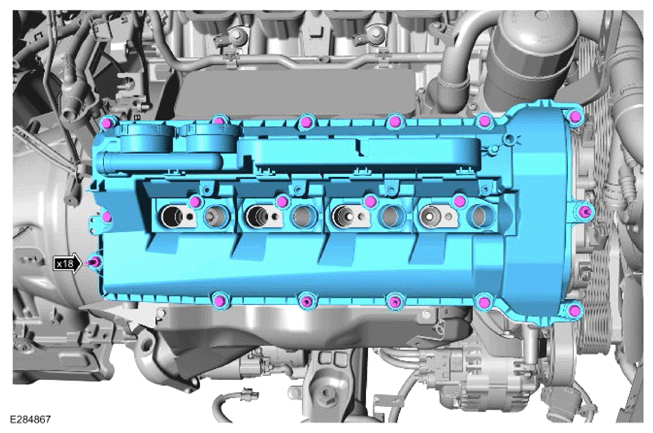

  14. CAUTION: Care must be taken to avoid damage to the mating surfaces.
    G15322097Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Loosen the 18 valve cover bolts.
    • Remove the right valve cover.
  15. G14053085Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove and discard the right valve cover gasket.
    • Remove and discard the 4 spark plug boss seals.
