Right Engine Mount (G2796557): Installation

The following step(s) applies to:

All vehicles

1. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

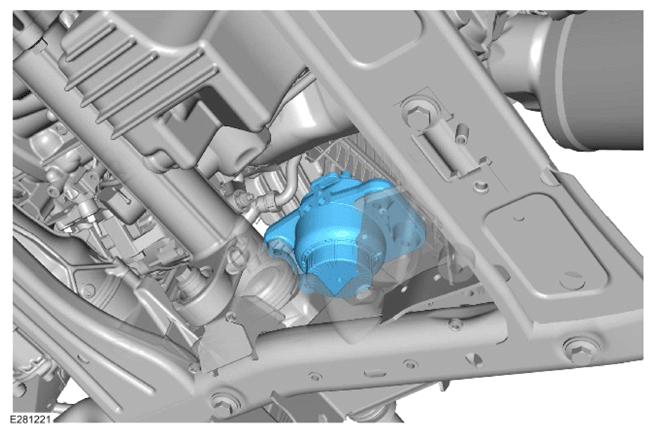

   Install the right engine mount.

2. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

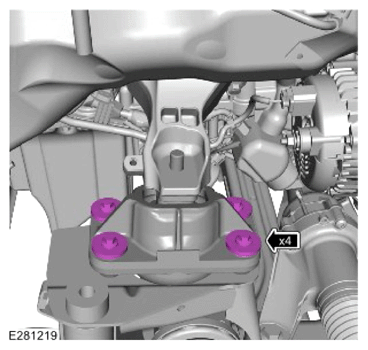

   Install and finger tighten the 4 engine mount bolts.

3. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

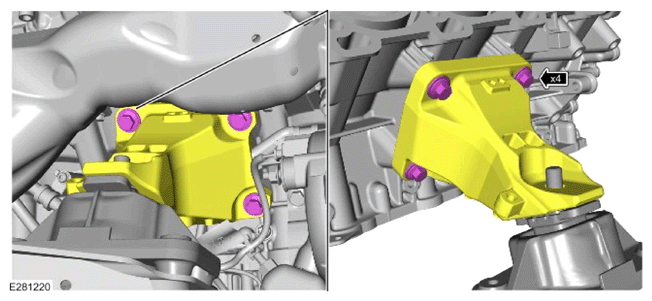

   • Reposition the engine mount bracket to the original position.
   • Install and tighten the 4 engine mount bracket bolts.

     Torque

     Stage 1: 45 Nm

     Stage 2: 60°

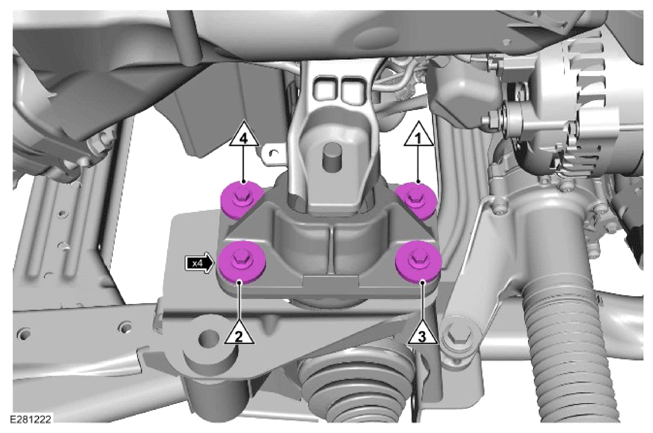

4. Fig 1: Engine Mount Bolts Tightening Sequence

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Tighten the 4 engine mount bolts in the sequence illustrated.

   Torque  : 32 Nm

5. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Remove the engine support.

   General Equipment: Transmission jack

6. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

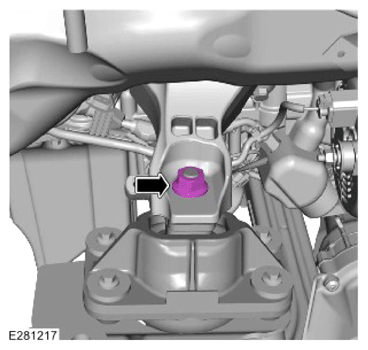

   Install and tighten the right engine mount nut.

   Torque  : 180 Nm

7. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

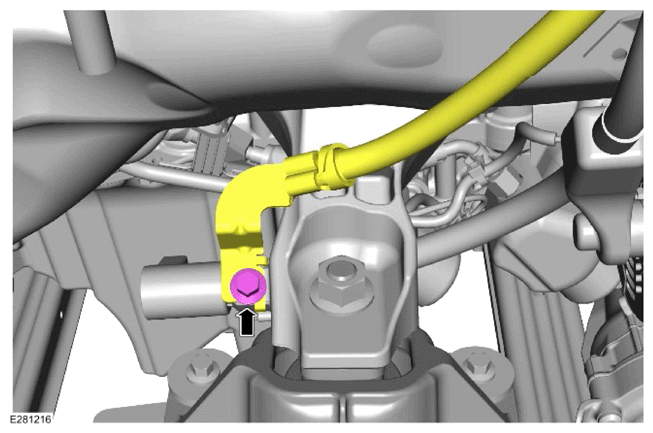

   • Secure the ground cable to the engine mount bracket.
   • Install and tighten the ground cable bolt.

     Torque  : 9 Nm

   The following step(s) applies to:

   Right hand drive vehicles

8. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

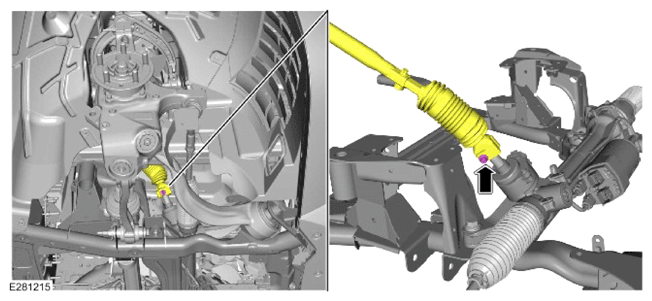

   • Connect the steering column shaft as illustrated.
   • Install and tighten a new steering column lower shaft lower bolt.

     Renew Part: Steering column lower shaft lower bolt Quantity: 1  .

     Torque  : 30 Nm

The following step(s) applies to:

All vehicles

1. Install the starter motor.

   Refer to: STARTER MOTOR

2. Install the exhaust system.

   Refer to: EXHAUST SYSTEM

3. Connect the 12 V system.

   Refer to: 12V SYSTEM DISCONNECT AND CONNECT
