Oil Pump (G2796546): Installation

WARNING: This page is about a different variant/trim than selected.

- Install the oil supply pipe.
- Install the oil pickup pipe.
- Install 3 new O-ring seals.
  Renew Part: Oil pick up pipe O-ring seal Quantity: 1 .

  Renew Part: Oil pump inlet tube O-ring seal(s) Quantity: 2 .
- Install 2 new O-ring seals.
  Renew Part: Oil pump wiring harness O-ring seal Quantity: 2 .
- Install the oil pump.
- Install and tighten the 3 oil pump bolts.
  Torque : 25 Nm
- Install and tighten the 3 oil supply pipe bolts.
  Torque : 11.5 Nm
- Install and tighten the 2 oil pickup pipe bolts.
  Torque : 11.5 Nm
- Install the electrical connector.
- Install and tighten a new bolt.
  Renew Part: Oil pump connector bolt Quantity: 1 .

  Torque : 11.5 Nm
- Connect the electrical connector.
- Install the oil pump drive sprocket.
- Install the special tool.
  Special Tool(s): 205-053
- Install and tighten the new bolt.
  Renew Part: Oil pump gear bolt Quantity: 1 .

  Torque : 21 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

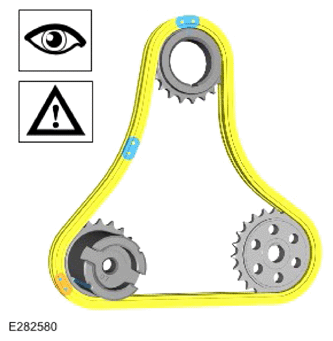

Install the lower timing chain making sure the coloured chain links align correctly with the High Pressure (HP) fuel pump camshaft and crankshaft sprocket markings.
CAUTION: Make sure that the tensioner spring is located against the cylinder block.

NOTE: Make sure that the component is installed to the noted removal position.
- Install the lower timing chain tensioner.
- Install and tighten the bolt.
  Torque : 21 Nm
Install the oil pan.
Refer to: OIL PAN
Connect the 12V system.
Refer to: 12V SYSTEM DISCONNECT AND CONNECT
