Left Exhaust Manifold (G2796542): Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION:
- Make sure the anti-seize compound does not contact the HO2S tip.
- If accidentally dropped or knocked install a new sensor.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

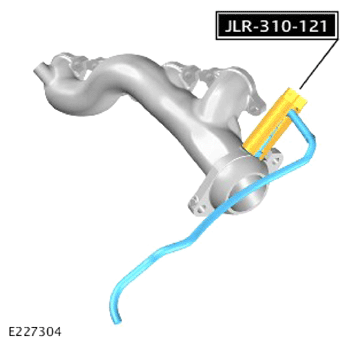

Use the special tool to install and tighten the HO2S to the left exhaust manifold.

Special Tool(s): 310-121

Torque : 45 Nm
CAUTION: If a new cylinder head has been installed then the special tool 303-1444-02 without the thread must be used to install the exhaust manifold.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

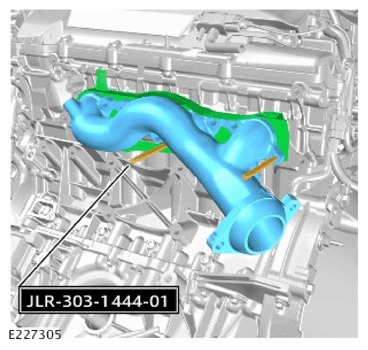

- Install the special tools.
  Special Tool(s): 303-1444-01
- Install the left exhaust manifold gasket.
  Renew Part: Exhaust manifold gasket - left side Quantity: 1 .
- Install the left exhaust manifold.

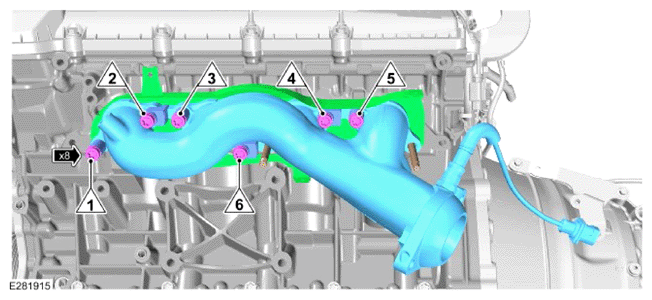

Fig 1: 6 Left Exhaust Manifold Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the 6 spacers.
- Use the special tool to install and tighten the 6 bolts in the illustrated sequence.
  Special Tool(s): JLR-303-1652

  Renew Part: Exhaust manifold bolts Quantity: 6 .

  Torque : 10 Nm
- Remove the special tools.
  Special Tool(s): 303-1444-01 , 303-1444-02

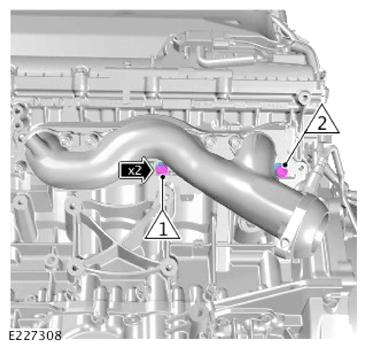

Fig 2: 2 Left Exhaust Manifold Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the 2 spacers.
- Use the special tool to install and tighten the 2 bolts in the illustrated sequence.
  Special Tool(s): JLR-303-1652

  Renew Part: Exhaust manifold bolts Quantity: 2 .

  Torque : 10 Nm

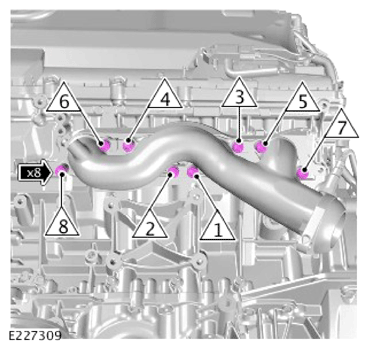

Fig 3: Left Exhaust Manifold Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Use the special tool to tighten the 8 bolts in the illustrated sequence.

Special Tool(s): JLR-303-1652

Torque : 18 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

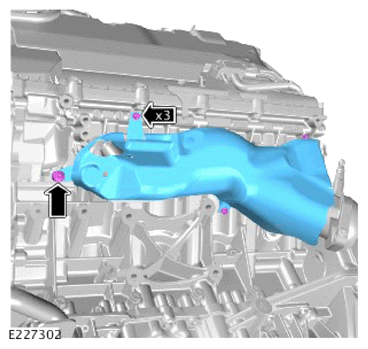

- Install the left exhaust manifold heatshield.
- Install and tighten the 4 bolts.
  Torque

  M6: 3 Nm

  M8: 25 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

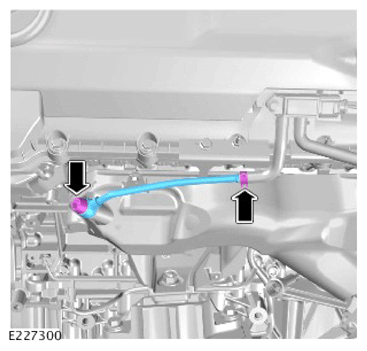

- Install the differential pressure sensor pipe.
- Install and tighten the banjo bolt.
  Torque : 50 Nm
- Install the pipe clip.

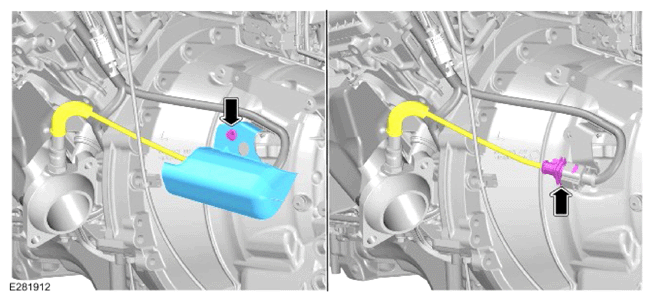

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Connect the HO2S electrical connector.
- Install the HO2S electrical connector heatshield.
- Install and tighten the bolt.
  Torque : 10 Nm
Install the A/C compressor.
Refer to: AIR CONDITIONING COMPRESSOR - V8 S/C 5.0L PETROL
Install the exhaust system.
Refer to: EXHAUST SYSTEM
Connect the 12V system.
Refer to: 12V SYSTEM DISCONNECT AND CONNECT
