Left Camshaft (G2796535): Removal

WARNING: This page is about a different variant/trim than selected.
CAUTION: Make sure that the orientation and code on the top of the camshaft bearing caps is noted (along with the bank - A or B), so that on installation the components are installed to their original position. Failure to follow this instruction may cause damage to the vehicle.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Disconnect the 12 V system.

    Refer to: 12V SYSTEM DISCONNECT AND CONNECT

  2. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: JACKING AND LIFTING

  3. Remove the timing chains, guides and tensioners.

    Refer to: TIMING CHAINS, GUIDES, AND TENSIONERS

  4. CAUTION: The thread is left handed.
    G15321746Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the M16 washer.
    • Install and tighten a new crankshaft pulley bolt.

      Renew Part: Crankshaft pulley bolts Quantity: 1  .

      Torque  : 20 Nm

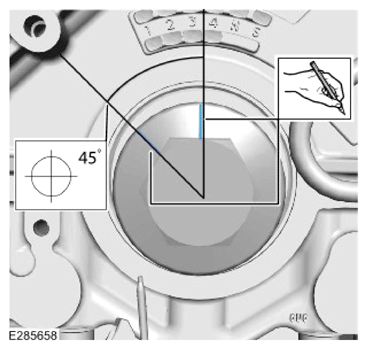

  5. G15321747Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Mark the crankshaft pulley bolt as illustrated.

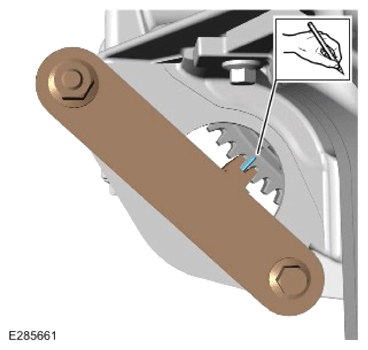

  6. G15321748Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Mark the tooth of the drive plate at the special tool as illustrated.

  7. G15321749Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the bolt.
    • Remove the special tool.

      Special Tool(s): JLR-303-1303

  8. G15321750Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 2 bolts.
    • Remove the special tool.

      Special Tool(s): JLR-303-1304

  9. CAUTION: The crankshaft must be set at 45° After Top Dead Center (ATDC) for cylinder 1.

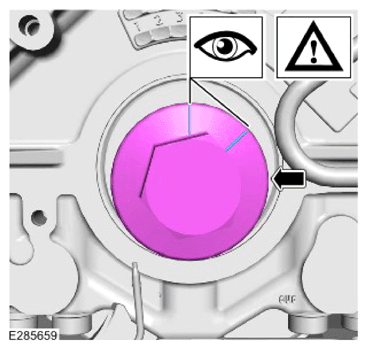

    G15321751Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Rotate the crankshaft in a clockwise direction by 45° until position as illustrated.

  10. G15321750Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the special tool to lock the crankshaft.

      Special Tool(s): JLR-303-1304

    • Install and tighten the 2 bolts.

      Torque  : 20 Nm

  11. G15321753Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the special tools as illustrated.

      Special Tool(s): 303-1452

    • Install and tighten the 6 bolts.

      Torque  : 10 Nm

  12. CAUTION: Only rotate the camshafts clockwise.
    NOTE: Right side camshafts shown, the step for left side is similar.
    G15321754Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Use a suitable tool to rotate the camshafts clockwise until all the valves are at their minimum open point.

  13. G15321753Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 6 bolts.
    • Remove the special tools.

      Special Tool(s): 303-1452

  14. CAUTION:
    • Make sure that all the valves are at their minimum open point.
    • Evenly and progressively release the camshaft bearing caps.
    NOTE:
    • Note the bearing caps position, orientation and markings. Each is marked with its position (number) and an orientation (arrow).
    • Note the installed position of the components before removal.
    G14053116Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 20 bolts.
    • Remove the 10 left camshaft bearing caps.
  15. NOTE: Note the installed position of the components before removal.
    G14053117Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the 2 left camshafts.
