Crankshaft Front Seal (G2796538): Installation

WARNING: This page is about a different variant/trim than selected.
  1. CAUTION:
    • Do not over tighten the crankshaft front seal. Failure to follow this instruction may result in damage to the vehicle.
    • Take extra care not to damage the seal.

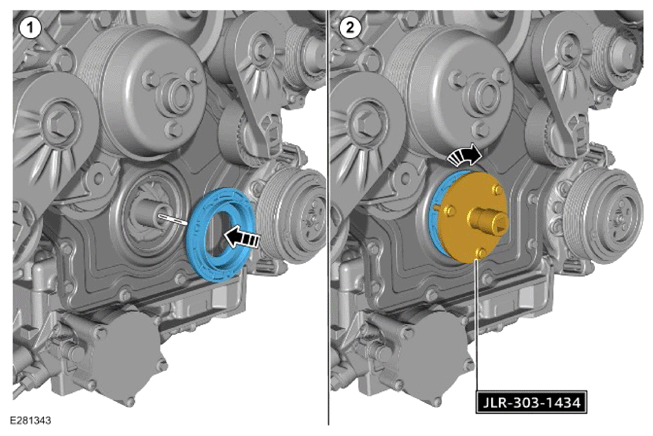

    G15321853Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Use the special tool to install the crankshaft front seal

    Special Tool(s): 303-1434

    Torque  : 26 Nm

  2. Install the crankshaft pulley.

    Refer to: CRANKSHAFT PULLEY

  3. Connect the 12V system.

    Refer to: 12V SYSTEM DISCONNECT AND CONNECT
