Engine Oil Vacuum Draining And Filling (G2796530): Filling

WARNING: This page is about a different variant/trim than selected.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Before installing the oil filter element and cap, check the bypass valve (A) is installed and correctly attached to the locating tabs (B).
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install a new O-ring seal.
  Renew Part: Oil filter and O-ring seal kit Quantity: 1 .
- Lubricate the oil filter O-ring seal (A) with clean oil and install the oil filter element into the cap. Make sure the oil filter element is pushed correctly on to the bypass valve inside the oil filter element cap (B).
  Refer to: SPECIFICATIONS
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

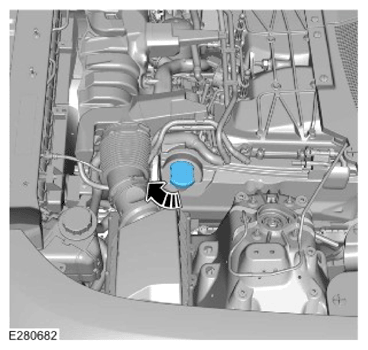

Install and tighten the oil filter element cap.

Torque : 28 Nm
NOTE: Make sure that the vehicle has been left for 5 minutes from filling with oil.

Fill the engine with the recommended oil to the correct level.

Refer to: SPECIFICATIONS
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

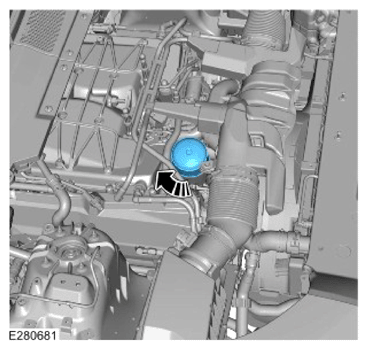

Install the oil filler cap.
Check the engine oil level.
- Start the engine and allow to idle for 2 minutes.
- Check for leaks.
- Stop the engine.
Check and top up the engine with oil if necessary.
Refer to: SPECIFICATIONS
Install the engine cover.
Refer to: ENGINE COVER - V8 S/C 5.0L PETROL
