Exhaust System - V8 S/C 5.0L Petrol (G2796740): Specifications

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

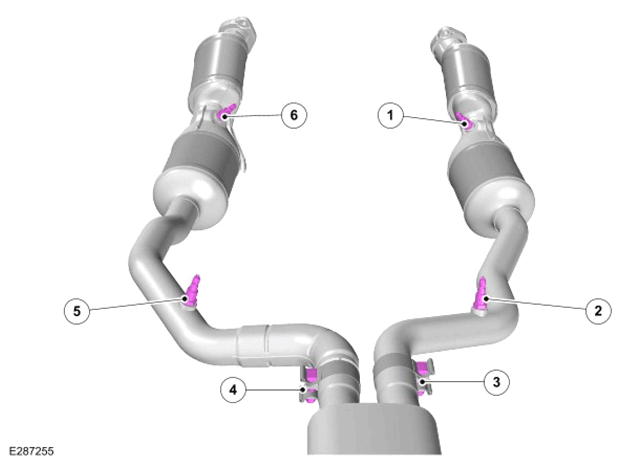

TORQUE SPECIFICATIONS

ITEM	DESCRIPTION	NM	LB-FT	LB-IN
1	Right mid catalyst Heated Oxygen Sensor (HO2S)	48	35	-
2	Right post catalyst HO2S	48	35	-
3	Right exhaust clamp	55	41	-
4	Left exhaust clamp	55	41	-
5	Left post catalyst HO2S	48	35	-
6	Left mid catalyst HO2S	48	35	-

NOTE: Numbers with green background are single use components.

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

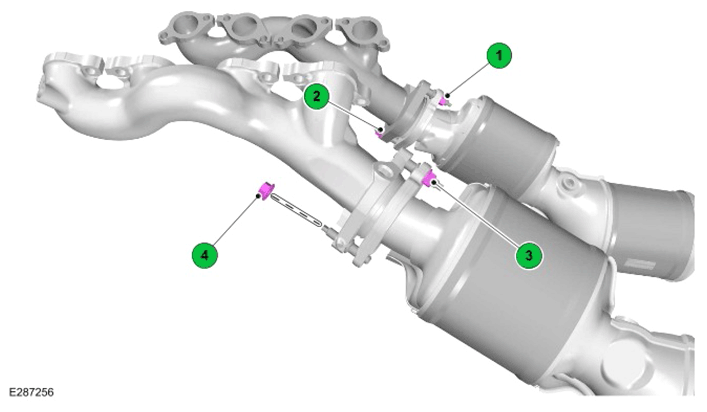

TORQUE SPECIFICATIONS

ITEM	DESCRIPTION	NM	LB-FT	LB-IN
1	Right inner exhaust manifold nut	40	30	-
2	Right outer exhaust manifold nut	40	30	-
3	Left inner exhaust manifold nut	40	30	-
4	Left outer exhaust manifold nut	40	30	-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

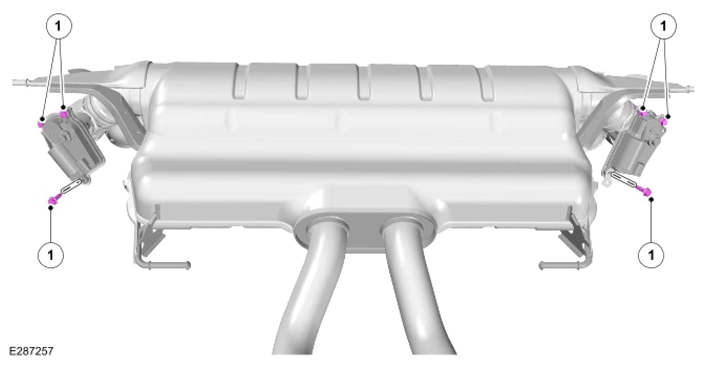

TORQUE SPECIFICATIONS

ITEM	DESCRIPTION	NM	LB-FT	LB-IN
1	Exhaust actuator control valves	10	7	-
