Right Catalytic Converter (G2796744): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the 12 V system.
Refer to: 12V SYSTEM DISCONNECT AND CONNECT
Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
Remove the exhaust system.
Refer to: EXHAUST SYSTEM
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

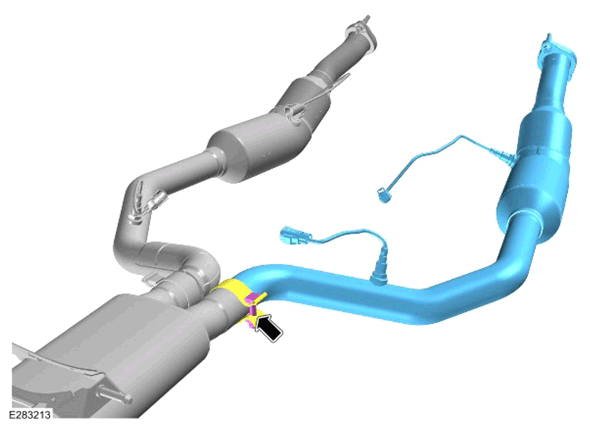

- Remove the nut and release the retaining clamp.
- Remove the right catalytic converter assembly.
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

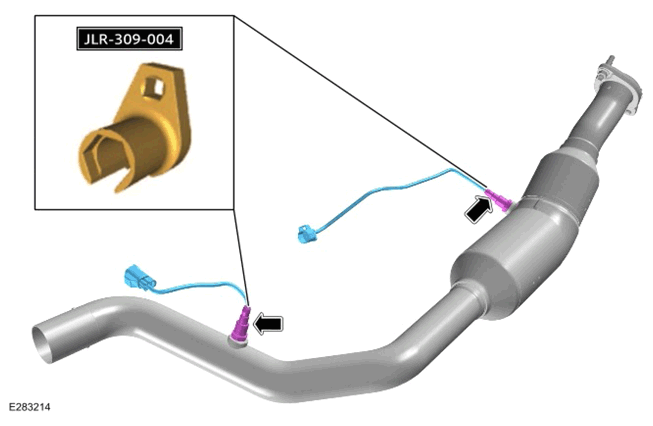

Use the special tool remove the 2 Heated Oxygen Sensor (HO2S).

Special Tool(s): JLR-309-004
