Rear Silencer (G2823262): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

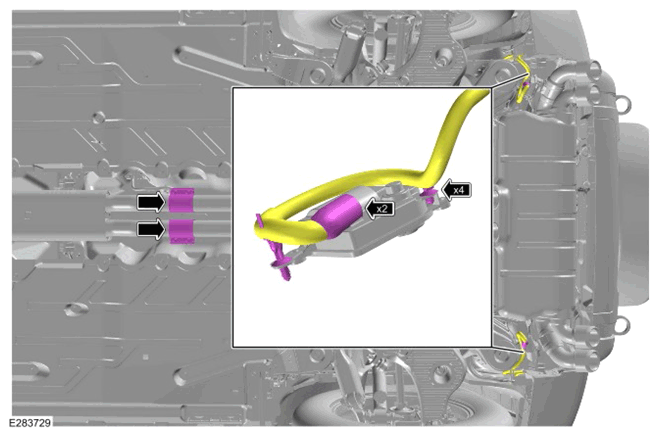

- Disconnect the 2 electrical connectors from the 2 exhaust actuator control valves.
- Release the 4 wiring harness clips.
- Release the 2 exhaust clamps.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

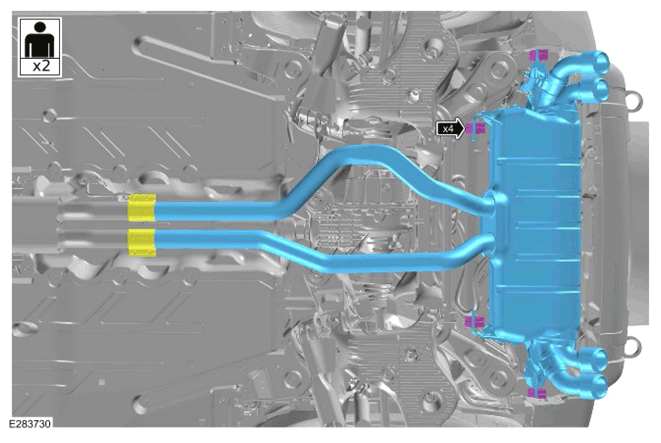

- Release the 4 exhaust mounting rubbers.
- With assistance, remove the rear silencer.
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 6 bolts from the 2 exhaust actuator control valves.
- Remove the 2 exhaust actuator control valves from the rear silencer.
