Exhaust System - V8 S/C 5.0L Petrol (G2796745): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
Remove the transmission undershield.
Refer to: TRANSMISSION UNDERSHIELD
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the 2 electrical connectors.
- Release the 2 wiring harnesses from the 2 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

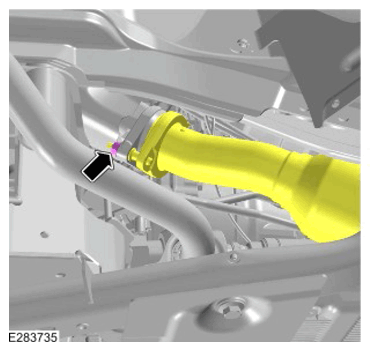

Remove and discard the left outer exhaust manifold nut.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

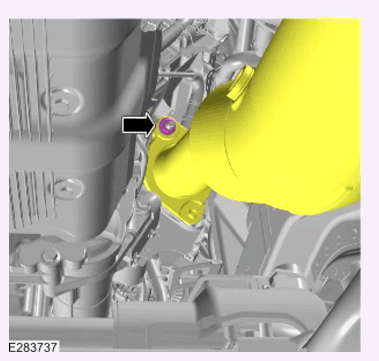

Remove and discard the left inner exhaust manifold nut.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

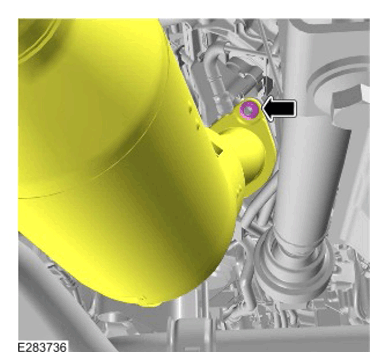

Remove and discard the right inner exhaust manifold nut.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

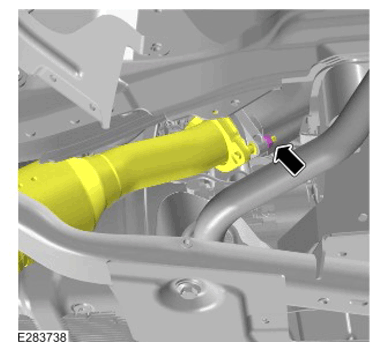

Remove and discard the right outer exhaust manifold nut.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the electrical connector from the left mid catalyst Heated Oxygen Sensor (HO2S).
- Release the wiring harness from the clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the electrical connector from the right mid catalyst HO2S .
- Release the wiring harness from the clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the rear left HO2S electrical connector heatshield.
- Disconnect the electrical connector from the rear left HO2S .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the rear right HO2S electrical connector heatshield.
- Disconnect the electrical connector from the rear right HO2S .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

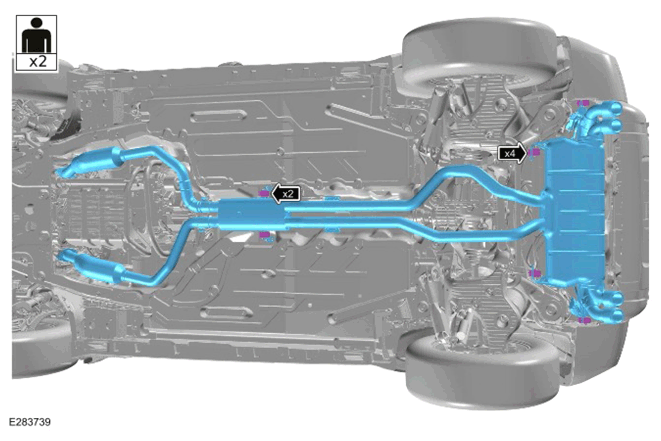

- Release the 2 front exhaust mounting rubbers.
- Release the 4 rear exhaust mounting rubbers.
- With assistance, remove the exhaust system.
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

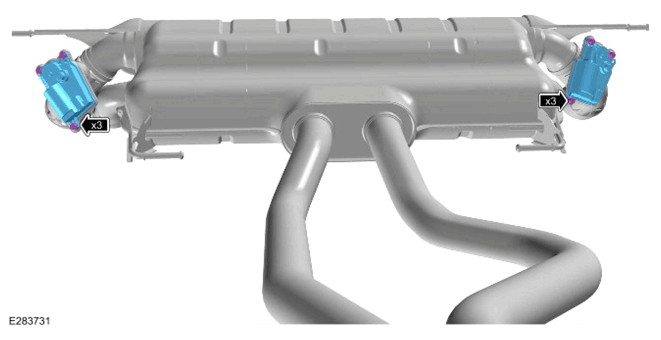

- Remove the 6 bolts from the 2 exhaust actuator control valves.
- Remove the 2 exhaust actuator control valves from the rear silencer.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Use the special tool to remove the mid and the post HO2S .

Special Tool(s): JLR-309-004
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Use the special tool to remove the mid and the post HO2S .

Special Tool(s): JLR-309-004
