Exhaust Emissions Control Equipment - 8.2.1.1
WARNING: This page is about a different variant/trim than selected.
Visually inspect the components for signs of non-original welding.
5.0L V8 S/C Petrol

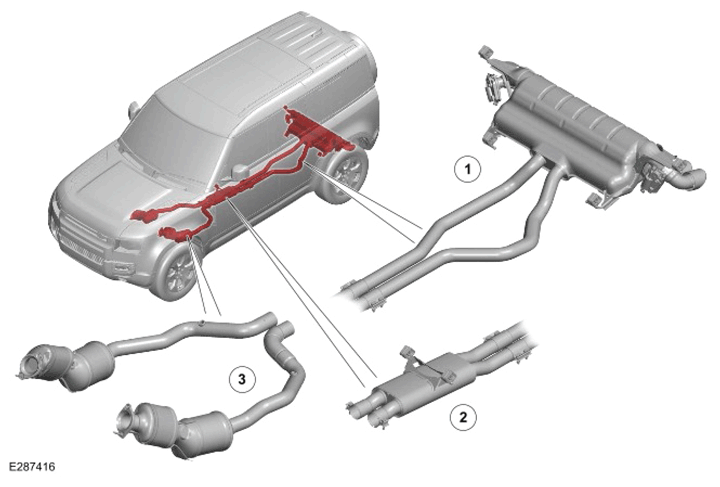

Component Overview - 1 of 2 - Vehicles Without Gasoline Particulate Filter (GPF)
| ITEM | DESCRIPTION |
|---|---|
| 1 | Exhaust rear section |
| 2 | Exhaust center section |
| 3 | Exhaust front section |

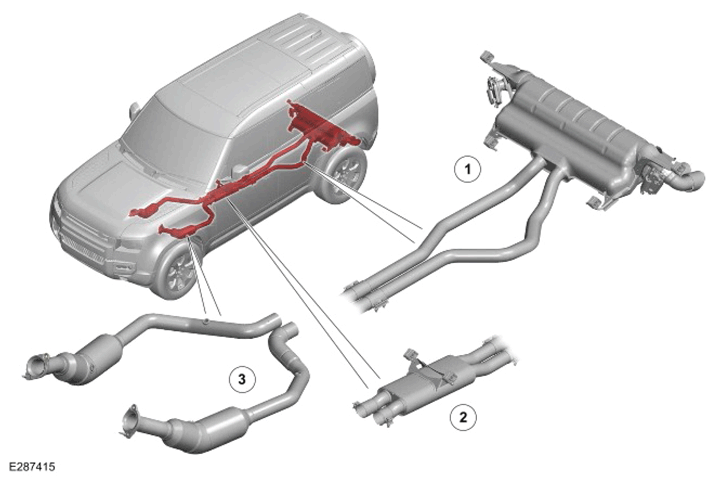

Component Overview - 2 of 2 - Vehicles With GPF
| ITEM | DESCRIPTION |
|---|---|
| 1 | Exhaust rear section |
| 2 | Exhaust center section |
| 3 | Exhaust front section |

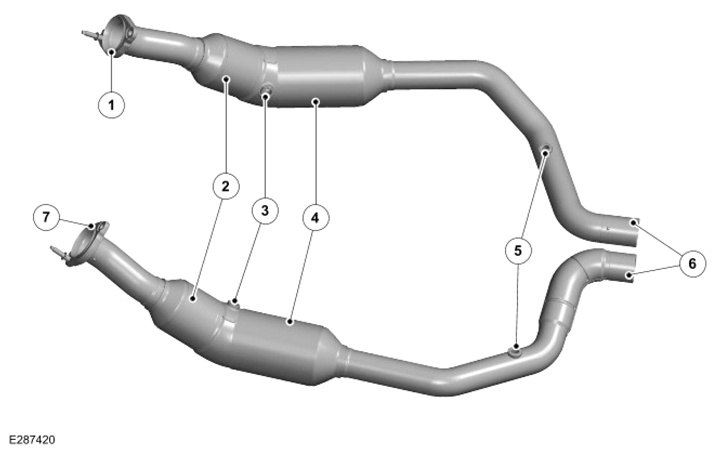

Exhaust Front Section - Vehicles Without GPF
| ITEM | DESCRIPTION |
|---|---|
| 1 | Flange connection - To right exhaust manifold |
| 2 | Pre catalytic converter (quantity 2) |
| 3 | Mid Heated Oxygen Sensor (HO2S) mounting hole (quantity 2) |
| 4 | Main catalytic converter (quantity 2) |
| 5 | Post HO2S mounting hole (quantity 2) |
| 6 | Connection - To exhaust center section |
| 7 | Flange connection - To left exhaust manifold |

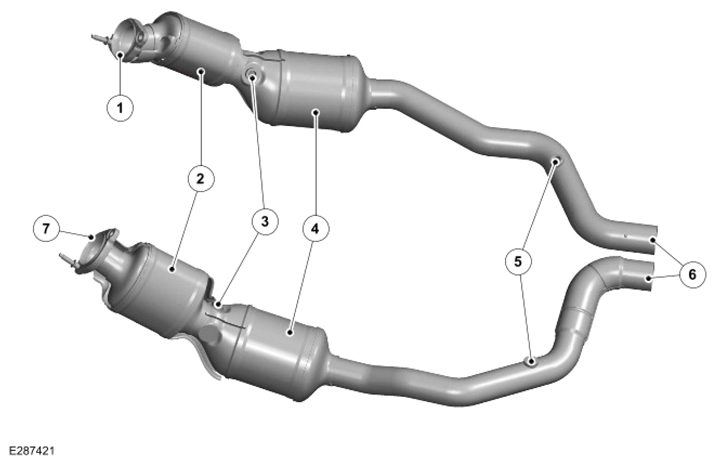

Exhaust Front Section - Vehicles With GPF
| ITEM | DESCRIPTION |
|---|---|
| 1 | Flange connection - To right exhaust manifold |
| 2 | Catalytic converter (quantity 2) |
| 3 | Mid HO2S mounting hole (quantity 2) |
| 4 | GPF (quantity 2) |
| 5 | Post HO2S mounting hole (quantity 2) |
| 6 | Connection - To exhaust center section |
| 7 | Flange connection - To left exhaust manifold |

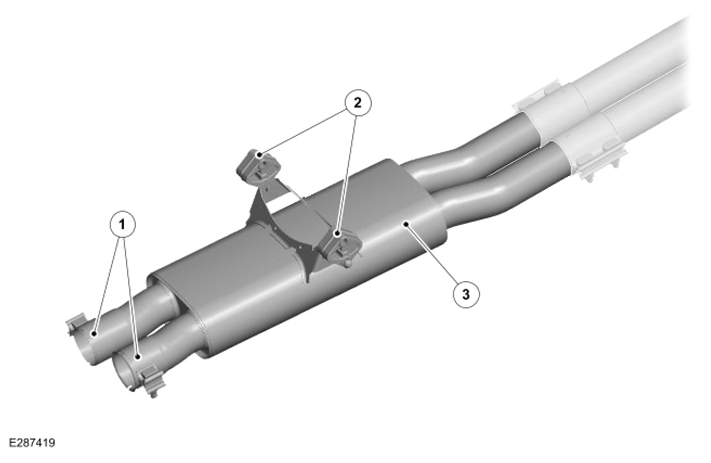

Exhaust Center Section
| ITEM | DESCRIPTION |
|---|---|
| 1 | Clamp (quantity 2) |
| 2 | Rubber mounts (quantity 2) |
| 3 | Resonator |

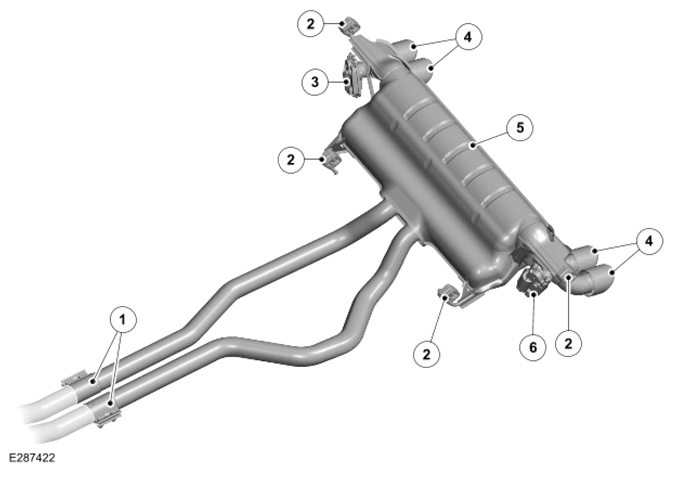

Exhaust Rear Section
| ITEM | DESCRIPTION |
|---|---|
| 1 | Service clamp (quantity 2) |
| 2 | Rubber mounts (quantity 4) |
| 3 | Active exhaust actuator - Right |
| 4 | Rearward exhaust outlet pipe (quantity 4) |
| 5 | Rear silencer |
| 6 | Active exhaust actuator - Left |
