Control Diagram
WARNING: This page is about a different variant/trim than selected.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|

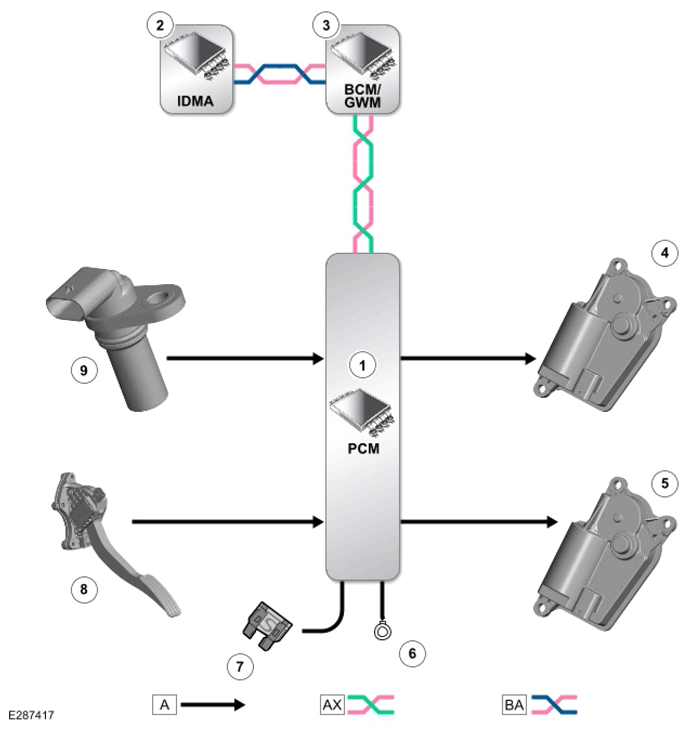

A = HARDWIRED: AX = FLEXRAY: BA = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) HUMAN MACHINE INTERFACE (HMI).
| ITEM |
DESCRIPTION |
| 1 |
PCM |
| 2 |
IDMA |
| 3 |
BCM
/GWM |
| 4 |
Active exhaust actuator - Left |
| 5 |
Active exhaust actuator - Right |
| 6 |
Ground |
| 7 |
Power supply |
| 8 |
APP
sensor |
| 9 |
Crankshaft Position Sensor (CKP) |
