Fuel Charging And Controls - Turbocharger - INGENIUM I6 3.0L Petrol (G2428617): Specifications
WARNING: This page is about a different variant/trim than selected.

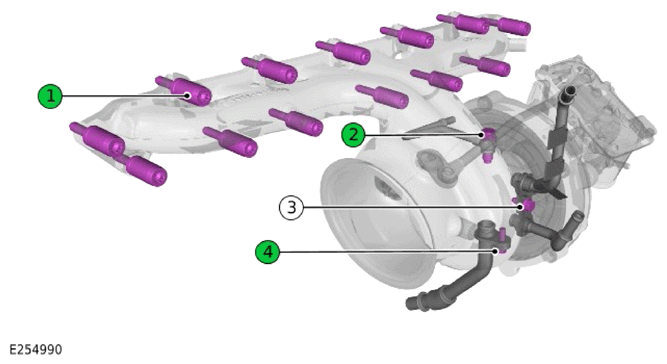

| COMPONENT TORQUE LOCATION |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
TORQUE SPECIFICATIONS
| ITEM |
DESCRIPTION |
NM |
LB-FT |
| 1 |
Turbocharger to cylinder head bolts |
|
|
| |
Stage 1 |
8 |
5.9 |
| |
Stage 2 |
12 |
8.9 |
| |
Stage 3 |
15 |
11 |
| |
Stage 4 |
135° |
135° |
| 2 |
Oil supply pipe bolt |
18 |
13.3 |
| 3 |
Turbocharger coolant pipe bolt |
11.5 |
8.5 |
| 4 |
Oil return pipe bolt |
11.5 |
8.5 |

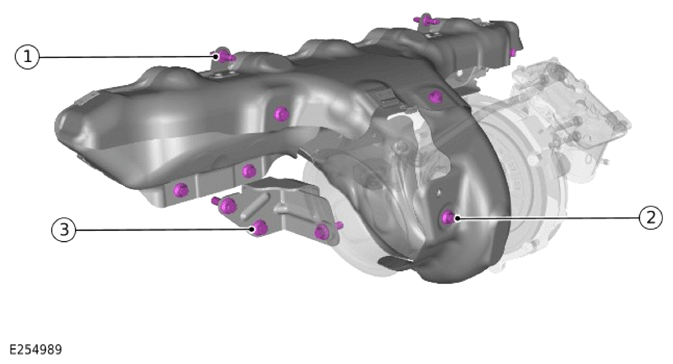

| COMPONENT TORQUE LOCATION |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
TORQUE SPECIFICATIONS
| ITEM |
DESCRIPTION |
NM |
LB-FT |
| 1 |
Turbocharger upper heatshield bolts |
6.5 |
4.8 |
| 2 |
Turbocharger heatshield bolts |
9 |
6.6 |
| 3 |
Turbocharger bracket bolts |
25 |
18.4 |
