Instrument Cluster Lens (G2323749): Removal

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: 12V SYSTEM DISCONNECT AND CONNECT
Remove the Instrument Cluster (IC).
Refer to: INSTRUMENT CLUSTER
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

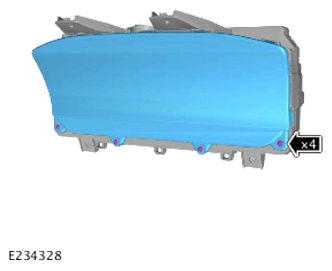

Remove the 4 screws.
CAUTION:
- Use a suitable plastic trim tool to release the component.
- Take extra care not to damage the component.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

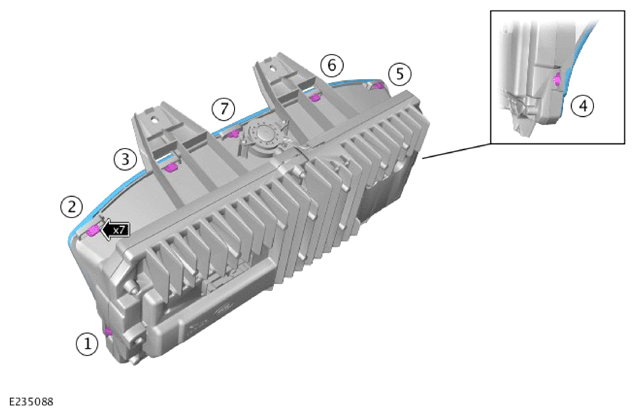

Release the 7 clips in the sequence shown and remove the IC lens.
