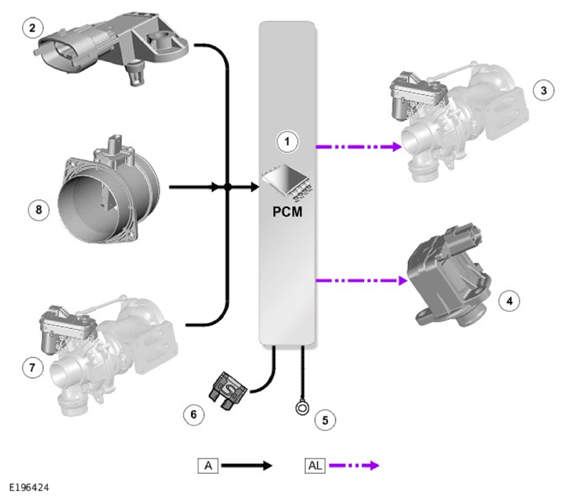

Control Diagram
WARNING: This page is about a different variant/trim than selected.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
A = HARDWIRED: AL = PWM
.
| ITEM |
DESCRIPTION |
| 1 |
PCM |
| 2 |
Manifold Absolute Pressure and Temperature sensor (MAPT) |
| 3 |
Turbocharger wastegate actuator |
| 4 |
CRV |
| 5 |
Ground |
| 6 |
Power supply |
| 7 |
Turbocharger wastegate actuator position sensor |
| 8 |
Mass Air Flow and Temperature (MAFT) sensor |
