Drive Plate - INGENIUM I4 2.0L Petrol (G2344494): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
Disconnect the startup battery ground cable.
Refer to: 12V SYSTEM DISCONNECT AND CONNECT
Remove the charge air cooler.
Refer to: CHARGE AIR COOLER - INGENIUM I4 2.0L PETROL
Remove the transmission.
Refer to: TRANSMISSION - INGENIUM I4 2.0L PETROL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

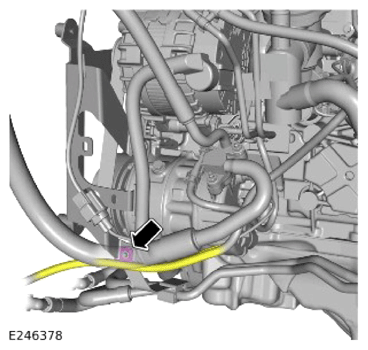

Release the wiring harness clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

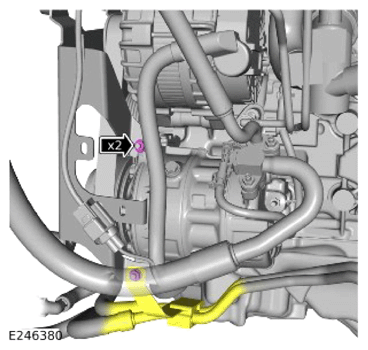

- Remove the 2 nuts.
- Release the transmission cooler pipes.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

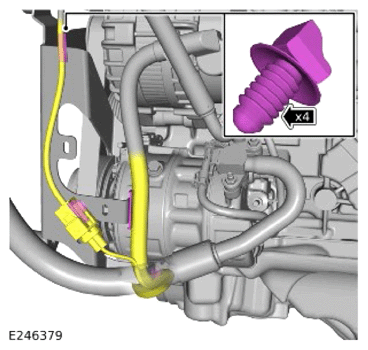

- Release the 4 wiring harness clips.
- Reposition the wiring harness away from the bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

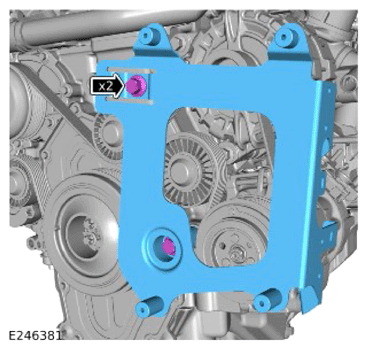

- Remove the 2 bolts.
- Remove the bracket.
CAUTION:
- Only rotate the crankshaft clockwise.
- The four locating pegs of the special tool must be installed correctly into the crankshaft pulley.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

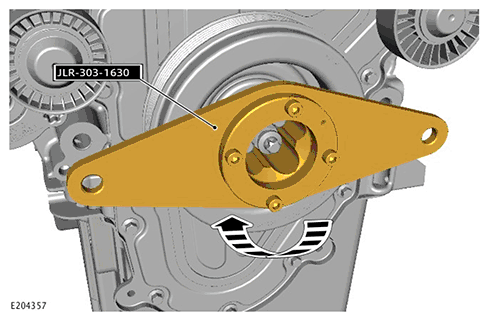

Install the special tool.

Special Tool(s): JLR-303-1630
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the remaining components of the special tool as illustrated.
- Use the special tool to lock the crankshaft in position.
  Special Tool(s): JLR-303-1630
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

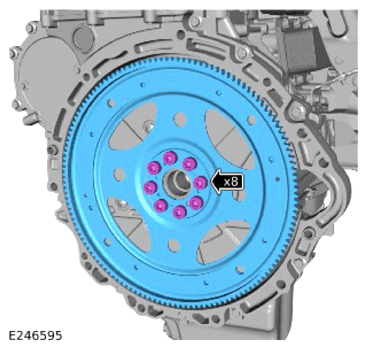

- Remove and discard the 8 bolts.
- Remove the drive plate.
