Paint Exceptions And Associated Repair Procedures (G1676685): Flaking/DELAMINATIONG

NOTE: Alternative Terminology: Peeling off, peel back, blowing off, shelling, poor bond, loss of adhesion, intercoat adhesion failure and poor adhesion.

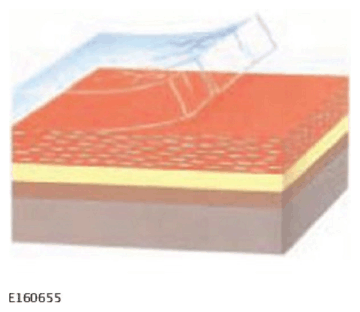

Clear Coat and Basecoat Flaking From Surface

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

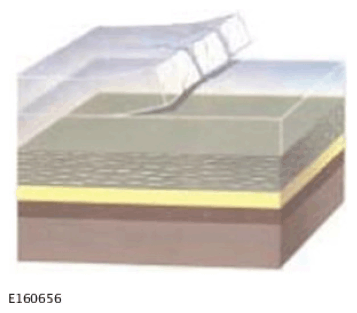

Clear Coat Flaking From Basecoat

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

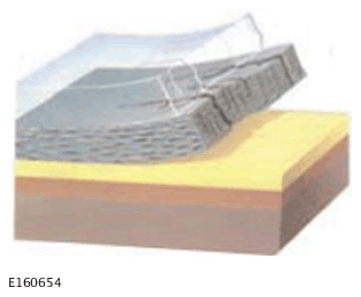

Clear Coat Flaking From Clear Coat

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Description

The clear coat or both basecoat and clear coat layers are partially or completely detached from the underlying surfaces over large or small areas depending on severity. The exception may exhibit flaking or may only be apparent from portions of the clear coat having previously been removed. The exception is confined to a clear coat only, or to both the clear coat and the basecoat layers.

Warranty Related Cause

Defective original process or materials.

Non-warranty Related Cause(s)

None.

Rectification Process

Determine if exception is permissible or not permissible. For additional information, Refer to: COSMETIC ACCEPTANCE STANDARDS
Permissible exception does not require a repair so should be passed as CA.
Repair any not permissible exceptions by flatting to below the layer where the flaking has occurred, then re-painting as necessary.
