Engine Assembly Remove For Access (G2422510): Notes
WARNING: This page is about a different variant/trim than selected.
| 12.41.06 |

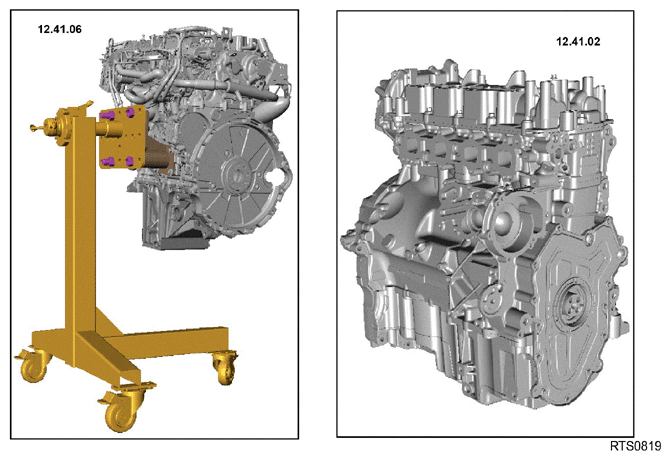

ENGINE ASSEMBLY - REMOVE FOR ACCESS |
2000 CC, INGENIUM DIESEL |
7.70 |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| 12.41.06 |
ENGINE ASSEMBLY - REMOVE FOR ACCESS |
2000 CC, INGENIUM PETROL, IC |
9.60 |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| 12.41.06 |
ENGINE ASSEMBLY - REMOVE FOR ACCESS |
2000 CC, INGENIUM PETROL, PHEV |
11.60 |
| 12.41.06 |
ENGINE ASSEMBLY - REMOVE FOR ACCESS |
3000 CC, INGENIUM DIESEL, WITH DIESEL EXHAUST FLUID |
12.40 |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| 12.41.06 |
ENGINE ASSEMBLY - REMOVE FOR ACCESS |
3000 CC, INGENIUM DIESEL, WITHOUT DIESEL EXHAUST FLUID |
12.30 |
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| 12.41.06 |
ENGINE ASSEMBLY - REMOVE FOR ACCESS |
3000 CC, INGENIUM PETROL |
11.30 |
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| 12.41.06 |
ENGINE ASSEMBLY - REMOVE FOR ACCESS |
5000 CC, AJ V8, SUPERCHARGED |
11.20 |
