Upper Timing Cover (G2344504): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
Disconnect the 12 V system.
Refer to: 12V SYSTEM DISCONNECT AND CONNECT
Remove the 2 Variable Camshaft Timing (VCT) solenoids.
Refer to: VARIABLE CAMSHAFT TIMING SOLENOID
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

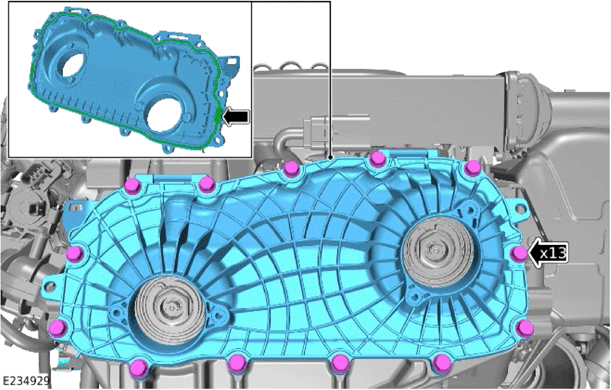

- Remove the 13 bolts.
- Remove the upper timing cover.
- Remove and discard the upper timing cover gasket.
